A quadcopter drone, also known as a quadrotor or simply a quadcopter, is an unmanned aerial vehicle (UAV) that uses four rotors for lift, stability, and propulsion. Each rotor is powered by an electric motor and spins at high speed, generating lift and thrust. By controlling the speed and direction of each rotor independently, a quadcopter can hover, move forward, backward, sideways, and rotate in any direction.
Quadcopter drones are widely used for various applications, ranging from recreational activities to industrial operations, due to their simplicity in design, ease of control, and adaptability for different payloads.
The JOUAV PH-007 quadcopter is perfect for commercial use. Its advanced features ensure reliability and efficiency for tough tasks like power line inspections, large-scale mapping, precision agriculture, and emergency response.
Extended Flight Time
Customizable and Scalable
The PH-007 features an open hardware interface and software development environment, enabling customized payloads, sensor configurations, and flight controls. This makes the integration with third-party software for real-time monitoring and automated task management seamless.
Heavy Payload and Versatility

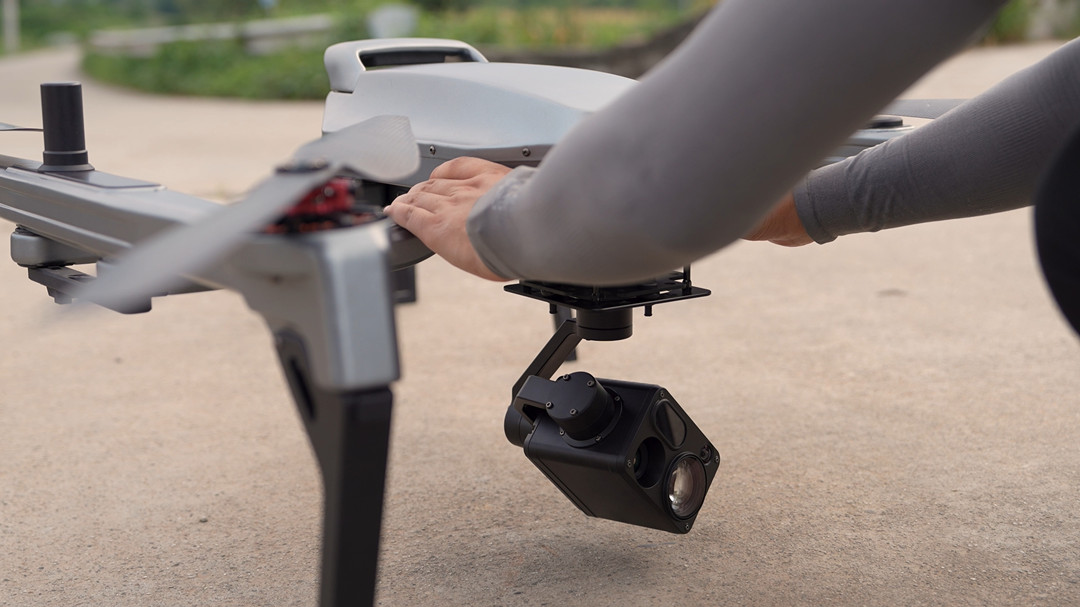

With a up to 2.5 kg of payload, the PH-007 can carry high-end equipment such as 4K cameras, thermal imaging, and LiDAR sensors. That makes it perfect for mapping, surveying, environmental monitoring, and inspection.
Long-Range Data Transmission
The PH-007 utilizes a stable 1.4 GHz frequency band for 1080P HD video and data transmission over a 10 km radius with reduced interference. CAN bus design improves its data transfer efficiency. This means it is very reliable, even in complex environments.
Advanced Flight Control and Safety

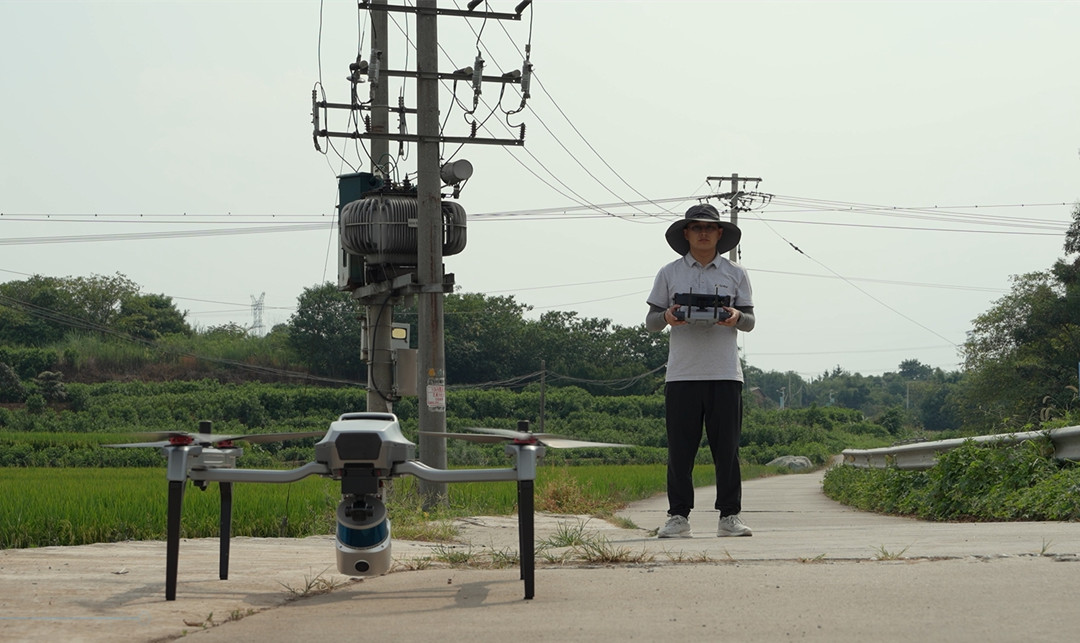

The PH-007 uses the NP206 flight control system and NX module for stable and precise flights. More significantly, the obstacle avoidance system maximizes safety by making the module detect obstacles in its flight path and avoid them.
Precision Navigation
Equipped with dual differential antennas, RTK and PPK technology, the PH-007 achieves centimeter-level accuracy in navigation and is ideal for high-precision tasks such as surveying and power line inspection.
Durability and Performance

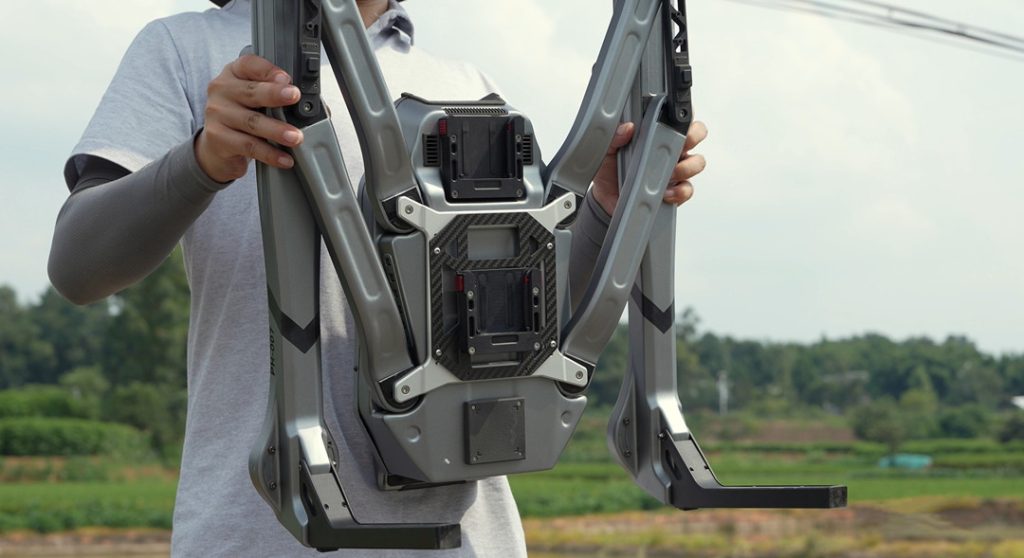

The PH-007 features a lightweight yet robust carbon fiber build: wind resistance of up to level 6, operations in light rain, and flight at altitudes of up to 5000 meters-featually making it perfect for high-altitude or remote applications.
Here’s a detailed comparison between the JOUAV PH-007 and some of the most popular quadcopter drones on the market. Take a look and decide for yourself!
The PH-007 quadcopter is precise and efficient. It uses advanced technology for autonomous flight and data collection. Here’s an overview of its workflow:
When choosing a quadcopter drone, take into account its purpose, camera quality, flight time, range, autonomous features, build quality, and budget. Here’s a concise guide to help you choose the right drone for your needs:
Aerial Surveying and Mapping
The PH-007 captures high-resolution imagery and point cloud data for creating detailed maps and 3D models. This ability is vital for urban planning and mining. In these fields, accuracy and efficiency are key.
Infrastructure Inspection

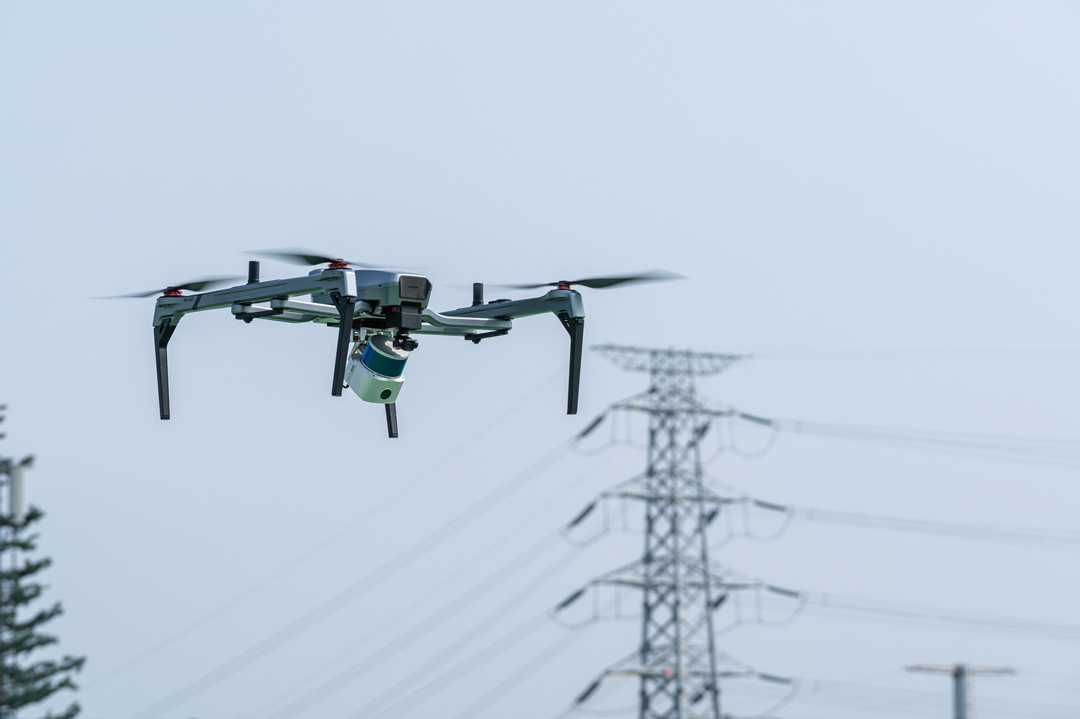

The PH-007 can carry cameras and sensors, making it widely used to inspect power lines, pipelines, wind turbines, and bridges. It easily reaches hard-to-access areas, detecting faults and reducing inspection risks while minimizing downtime.
Security and Surveillance
The PH-007 is vital for security work, offering high-resolution video and live streaming to monitor large areas. It patrols borders, secures sensitive sites, and monitors events. This minimizes risks and boosts efficiency.
Search and Rescue
In emergencies, the drone helps find missing people and assess disaster zones. Equipped with thermal imaging and real-time video, it enhances situation awareness in hazardous or remote areas.
Environmental Monitoring
For environmental work, the PH-007 tracks ecosystem changes and wildlife. It also measures vegetation health, air quality, and water quality. It provides accurate, actionable data. It supports research, conservation, and climate change studies.
Agriculture
The PH-007 revolutionizes precision farming using multispectral and thermal sensors to acquire data on crop health analysis, irrigation, and detection. These important insights allow farmers to optimize yield, reduce costs, and cut environmental impacts.
Law Enforcement
The PH-007 has been widely used by police for various activities such as crowd monitoring, reconstruction of accidents, and surveillance during critical operations. By capturing aerial views and delivering real-time intelligence, the PH-007 enhances situational awareness and supports tactical decision-making.
Delivery
Equipped with a drop kit, the PH-007 can be used for small-scale delivery operations. In commercial applications, it can transport lightweight goods, documents, or medical supplies over short distances. This makes it useful in industries such as healthcare, logistics, and emergency response.
Construction Monitoring
The PH-007 enhances construction projects by providing real-time progress monitoring and site analysis. It helps project managers track milestones, assess material usage, and ensure safety compliance with aerial images and videos. In addition, it generates 3D site models to support planning and decision making.
How to Choose the Best Quadcopter Drone?
While selecting a quadcopter drone, one should consider purpose, camera quality, flying time, range, autonomous feature build quality, and, finally, budget. Below is a short guide on how to choose the right drone based on your needs:
Define Your Purpose
Different industries and applications demand different levels of drone performance.
For aerial surveying and mapping, it's essential to have a drone with high-precision GPS (RTK/PPK) and high-resolution cameras for accurate georeferencing.
Drones intended for inspection tasks, such as power line or pipeline checks, should be equipped with high-quality cameras of at least 20 MP and can carry thermal or zoom cameras.
Search and rescue will involve drones with thermal imaging, long flight times, and large area coverage.
In agriculture, drones with multispectral or thermal sensors are employed for crop health monitoring, while security applications require drones with long flight times, high-quality cameras, and stable communication systems.
Camera and Sensor Quality
The quality of the camera and sensor is essential. A high-resolution camera of at least 20 MP is required for applications like mapping, while 4K or higher resolution would be perfect for inspections and security.
For specialized applications, thermal or multispectral sensors are essential. Stabilization systems, like a 3-axis gimbal, ensure smooth, shake-free footage.
Flight Time and Battery Life
Flight time and battery life are key considerations for professional drones. A minimum of 30 to 45 minutes of flight time is standard. For operations like surveying or mapping, a longer flight time (50 minutes or more) is preferable to reduce downtime.
Large capacity, long-lasting batteries range from 6000mAh to 10000mAh; swappable batteries can make it work continuously in the long mission.
Range and Control
The control and transmission range of a drone is also very important. In most professional drones, it is possible to see 6 to 10 km of control range, while there are high-end drones that push that limit to 50 km, which is ideal for a large-scale survey.
Autonomous Features
Autonomous features enhance efficiency and safety. Waypoint navigation enables a drone to independently fly a pre-programmed route, which is very useful in surveying or mapping.
Obstacle avoidance is critical to safely navigate around structures, while the return-to-home feature makes sure that the drone automatically returns if the signal is lost or the battery gets low, hence reducing the risks of accidents.
Build Quality and Portability
Durability and portability are also important, particularly for field operations. Durability in drones can come from materials such as carbon fiber or reinforced plastic, while at least an IP43 rating protects against rain and dust. The foldable drone is perfect for operations very far away from the nearest city.
Budget and After-Sales Service
Budget and after-sales service shall be put into consideration. Professional drones start from 3,000 to over 50,000 dollars, but models within the range of 6,000 to 30,000 dollars offer a very good balance regarding advanced features.
Find out if the manufacturer will offer reliable after-sales support, including warranties, spare parts, and customer service. Indeed, JOUAV, DJI, and Autel have very great support networks.
The PH-007 is best for professional applications that demand high-precision mapping, extended flight times, and payload versatility. It is highly capable of handling a variety of tasks with its RTK/PPK integration, 61MP camera, and up to 85 minutes of flight time.
Types of Quadcopter Drones
Quadcopter drones can be made in different shapes for the frame, with each having its own characteristics and applications.

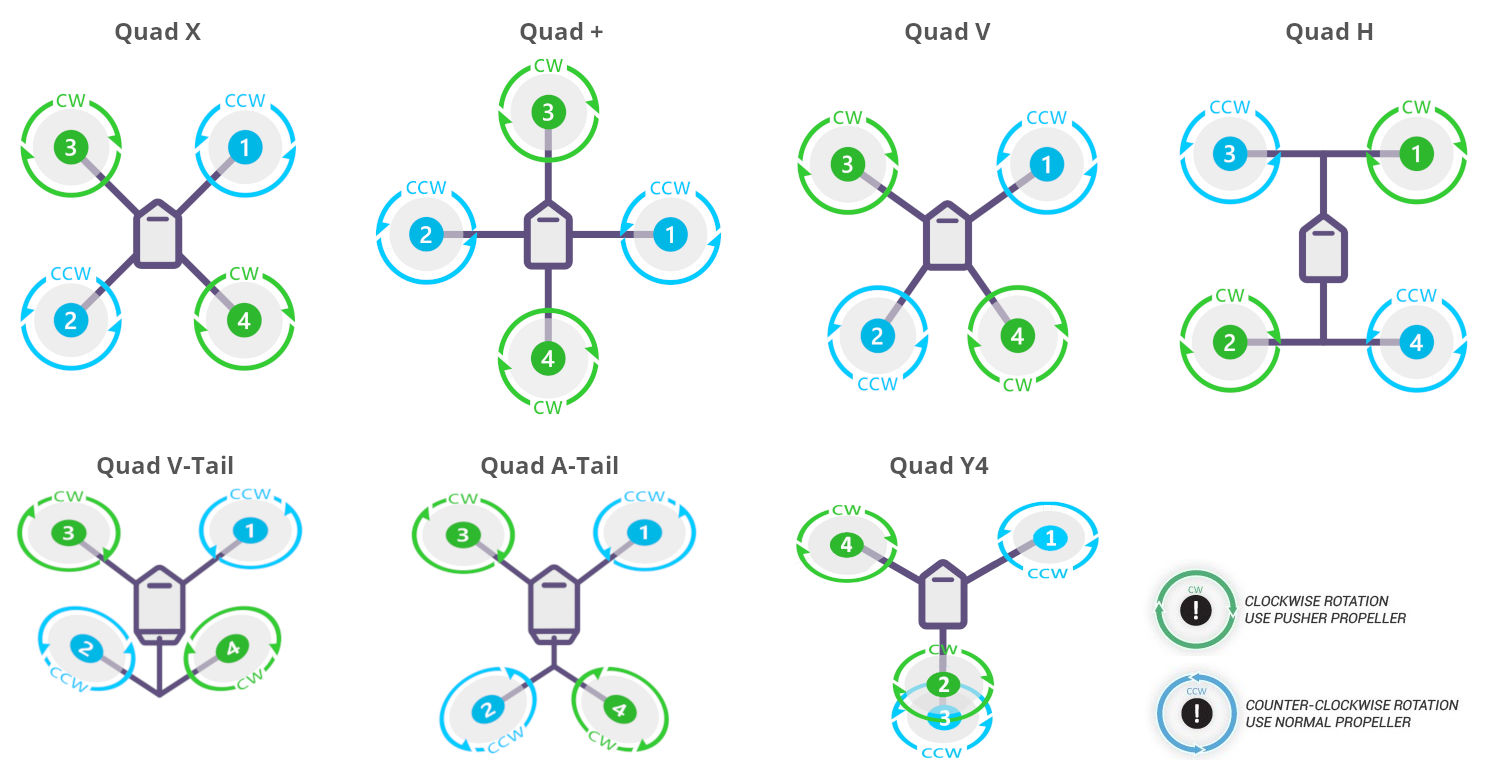

Types of quadcopter drones. Source from ArduPilot 2022.
X Quadcopter
The most common type is the X-quadcopter, where arms are arranged in an "X" configuration. It offers great stability and maneuverability, making it suitable for aerial photography, racing, and delivery. Its simple design is easy to build and maintain, ideal for versatile use.
H Quadcopter
The H-quadcopter has arms that extend horizontally, in an "H" configuration. It's used for heavy-lift applications, such as large cameras or equipment, providing increased stability and reduced vibration. It is highly targeted at industrial or professional usage.
+ Quadcopter
The + quadcopter features arms in a "+" configuration, offering compact agility for indoor flying or racing. Its lightweight design ensures high maneuverability, making it suitable for tight spaces or quick aerial moves.
Y4 Quadcopter
The Y4 quadcopter is both stable and efficient, with its arms forming a "Y" shape. This minimizes vibration and is versatile; thus, it may be used for photography and racing.
V-Tail or A-Tail Quadcopter
The V-tail or A-tail quadcopter has arms that are arranged diagonally in a "V" or "A" shape. It is known to be agile and responsive; therefore, it is liked for racing and aerial acrobatics.
Advantages of Quadcopters
Quadcopters have gained widespread popularity across industries and hobbies due to their exceptional capabilities and adaptability.
Maneuverability
Quadcopter drones offer precise control for complex movements such as hovering, flipping, and smooth landings. They can also perform vertical takeoff and landing (VTOL), allowing them to operate efficiently in confined spaces without requiring runways.
Versatility
Quadcopter drones excel in diverse applications, including aerial photography, real estate inspections, agriculture, search and rescue, delivery services, infrastructure assessments, and scientific research. Their ability to carry adaptable payloads like cameras, sensors, or delivery packages further enhances their utility across these tasks.
Cost-effective
Quadcopters often reduce operational expenses compared to traditional methods. For example, they eliminate the need for scaffolding or helicopters in inspections and complete tasks faster, minimizing labor and time costs.
Easy to fly
Modern quadcopters are equipped with user-friendly controls and autonomous flight modes, ensuring a smooth learning experience for beginners. Many even include training resources like simulators, enabling users to quickly master their operation.
Quadcopter vs. Fixed Wing Drone
Quadcopters and fixed-wing drones are two primary types of unmanned aerial vehicles (UAVs), each with its strengths and weaknesses. Let's compare the two:
| Feature | Quadcopter | Fixed-Wing Drone |
| Flight Time | Shorter flight time due to battery limitations | Longer flight time, especially for larger models |
| Flight Efficiency | Efficient for covering large areas | Ideal for short-range missions and tasks |
| Payload Capacity | Limited payload capacity | Higher payload capacity |
| Takeoff and Landing | Vertical takeoff and landing (VTOL) | Requires a runway for takeoff and landing |
| Stability in Wind | More stable in windy conditions | Susceptible to wind disturbances |
| Maneuverability | Highly maneuverable, can hover, and fly in any direction | Less maneuverable, limited to forward flight |
| Cost | Generally less expensive | Typically more expensive, especially for larger models |
| Complexity | Easier to operate, especially for beginners | Requires more technical expertise and skill to pilot |
When to Choose Which:
Quadcopters:
Quadcopters excel in scenarios that require precise maneuverability and agility. They are particularly suited for:
- Close-Quarters Inspection: Their ability to hover and perform precise maneuvers makes them ideal for inspecting confined spaces like bridges, buildings, or machinery.
- Real-Time Surveillance: When immediate, real-time visual data is crucial, quadcopters can provide on-demand surveillance of events or areas of interest.
- Versatile Applications: Their versatility allows them to be used for various tasks, from aerial photography and videography to search and rescue operations.
Fixed-Wing Drones:
Fixed-wing drones, on the other hand, are optimized for endurance and speed, making them suitable for:
- Large Area Mapping: Their longer flight times and higher speeds allow them to efficiently map large areas, such as agricultural fields or construction sites.
- Extended Surveillance: For tasks that require prolonged flight times, such as border patrol or wildlife monitoring, fixed-wing drones are a reliable choice.
- Linear Infrastructure Inspection: Inspecting linear infrastructure like power lines or pipelines benefits from the efficiency of fixed-wing drones. They can cover long distances in a single flight, reducing the need for frequent takeoffs and landings.
How Does a Quadcopter Fly?
Quadcopters fly by utilizing Newton's third law of motion: every action has an equal and opposite reaction. Each of the quadcopter's four rotors pushes air downward, and in turn, the air pushes the quadcopter upward. This thrust allows the quadcopter to lift off and stay in the air as long as the upward force equals or exceeds its weight. The ability to independently control the speed of each rotor allows the quadcopter to make various maneuvers.

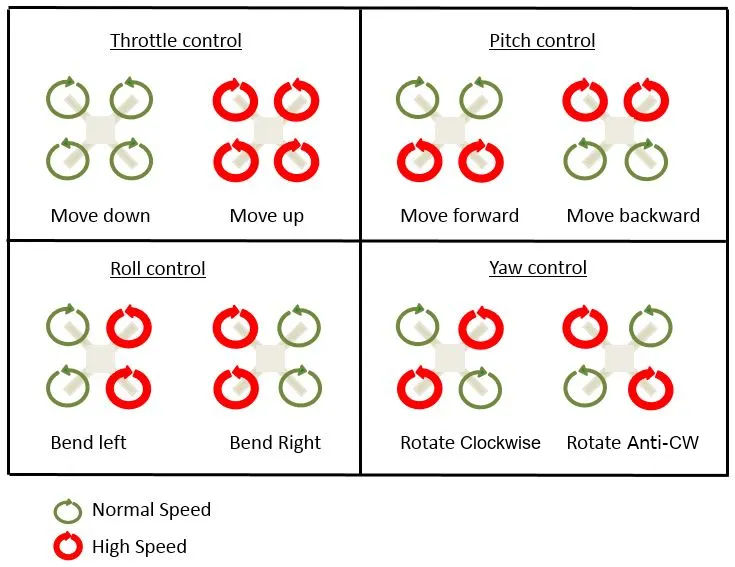

Quadcopter movements and control. Source from Drone Quadcopter 2019.
Achieving Stability
A big challenge for any drone is to counteract the torque created by spinning rotors. In a quadcopter, the rotors are in pairs that spin in opposite directions. The rotors that are diagonally opposite each other will rotate either clockwise or counterclockwise. This cancels out the net torque, preventing the quadcopter from spinning uncontrollably about its axis. By maintaining this balance, the quadcopter can hover or ascend and descend vertically without spinning.
Controlling Yaw
Yaw, or rotation about the vertical axis, is accomplished by differential input to the speeds of the opposing rotor pairs. For instance,
- Clockwise yaw: Increase the speed of the counterclockwise rotors while decreasing the speed of the clockwise rotors.
- Counterclockwise yaw: Do the opposite, increasing the speed of clockwise rotors and slowing the counterclockwise ones.
This imbalance creates torque that rotates the quadcopter in the desired direction.
Achieving Horizontal Motion
To move forward, backward, or sideways, the quadcopter tilts slightly in the desired direction. This is done by adjusting the speeds of the rotors.
- Forward motion: Increase the speed of the rear rotors and decrease the speed of the front rotors.
- Backward motion: Reverse this configuration, with faster front rotors.
- Sideways motion: For left movement, speed up the right rotors, and for right movement, speed up the left rotors.
As the quadcopter tilts, a horizontal thrust component is generated, propelling it in the desired direction. The flight controller ensures the vertical thrust remains sufficient to counteract gravity, keeping the drone airborne.

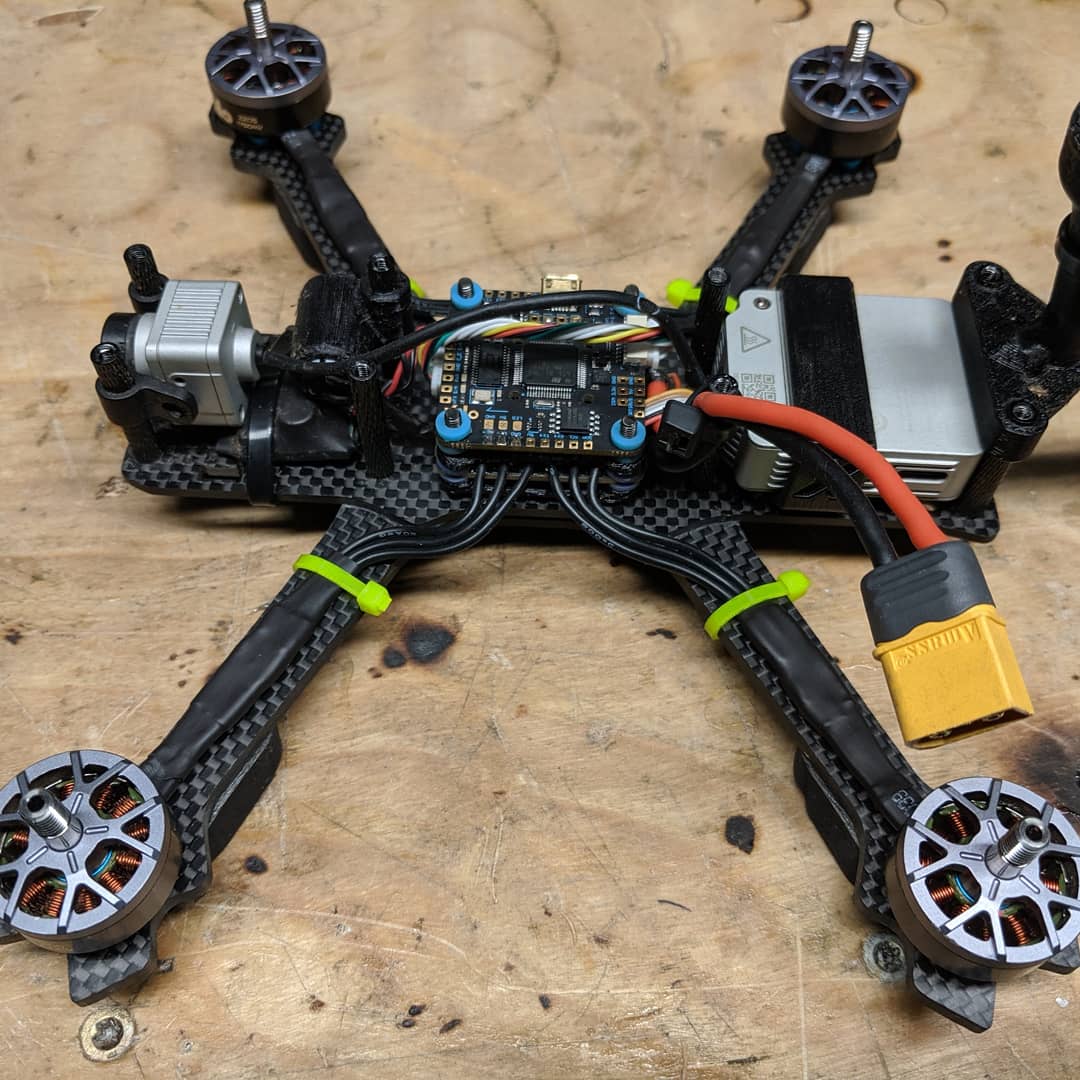

How to Build a Quadcopter Drone?
Below is a step-by-step guide on how to build a basic quadcopter drone based on key principles and components used in high-performance FPV (First-Person View) drone builds.
Step 1: Gather the Required Components
Following are the major components that you will require for building your quadcopter:
- Frame: The frame is the structural component of the quadcopter. These are typically made from light materials, such as carbon fiber or plastic, which make them strong enough without adding too much weight.
- Motors: You will need four motors for a quadcopter, one attached to each arm. The size and power of the motors would, again, relate to the size of the frame and the kind of drone one intends to make.
- ESCs: Four are needed, one for each motor. The ESCs control the motors' speed depending on the flight controller input.
- Flight Controller: This is the brain of your quadcopter. It will process data from sensors and send signals to adjust the motor speed for stable flight.
- Propellers: You'll need four propellers, and their size and pitch depend on your motors and frame.
- Battery: A LiPo (Lithium-Polymer) battery is usually used in drones because it has very high energy density. One should choose a battery with the right voltage and capacity that can support the motors and provide sufficient flight time.
- Transmitter and Receiver: Radio transmitter and receiver allow you to control the drone remotely.
- Gimbal or Camera Mount (Optional): In case you want to attach a camera for photography or video capture, a gimbal provides stability for the camera during flight.
- Miscellaneous: Jumper wires, connectors, screws, and double-sided tape for mounting components.
Step 2: Assemble the Frame
Assemble the frame of your quadcopter by attaching the arms or booms to the central body. Most frames are modular, so refer to the instructions provided by the frame manufacturer to attach the arms. Make sure all arms are securely attached and that the frame is level.
Step 3: Mount the Motors
Mount the four motors to the ends of the frame's arms. Make sure that the motors are properly positioned in a clockwise or counterclockwise configuration to match the direction of rotation that each motor will require. Tighten them well but avoid over-tightening, which may also damage the frame.
Step 4: Connect the Electronic Speed Controllers (ESCs)
Each motor requires one ESC to control the motor's speed. Each ESC is then connected to its respective motor with the motor wires. Next, the ESCs are to be mounted along the arms of the frame using zip ties or double-sided tape.
Connect each ESC's power wires to the Power Distribution Board (PDB). The PDB shall then distribute the power from the battery to the ESCs. Ensure that all the connections are tight and insulated to prevent short circuits.
Step 5: Installation of Flight Controller
Mount the flight controller in the center of the frame. It should be placed in a manner that will allow the drone to balance out and remain stable. The flight controller serves to adjust the speed of every motor based on the input from sensors; hence, its placement is critical.
Step 6: Wiring the Components
Now, the ESCs will be connected to the flight controller. These will again differ with the type of flight controller that one is using. Typically, the ESCs will plug into the appropriate pins on the flight controller for motor control. In addition, hook up the receiver, GPS, and other sensors to the flight controller.
Step 7: Propeller Installation
Once all components are connected, it's time to attach the propellers to the motors. Make sure each motor is paired with the correct propeller type (clockwise or counterclockwise). Tighten the propellers securely, ensuring they are balanced to avoid wobbling during flight.
Step 8: Power Up and Configure the Flight Controller
Connect the battery to the PDB, considering the voltage and capacity that will set up the quadcopter. Power on and configure the flight controller with a ground station or companion app of your flight controller. Calibrate the ESCs and check the motors for the correct spinning direction.
For advanced configurations, such as FPV flying, you will also need to configure the camera, video transmitter, and antenna.
Step 9: Test Flight
After all components have been securely installed and software settings configured, it is now the perfect time to take your quadcopter for a test flight. Perform small, controlled movements on flat ground. Adjust settings for fine-tuning in the flight controller with regard to performance. It may include setting the speed of motors, setting PID values, and setting up stability.
Step 10: Fine-Tune and Additional Features
Once you are comfortable with the basic flight functionality, additional features can be added, such as a gimbal for smoother camera footage, or components upgraded, such as the GPS for better navigation and control. Test the drone regularly in different conditions to enhance your flying skills and optimize its performance.
How to Calibrate a Quadcopter Drone?
Calibration of your drone is highly important to ensure that it works perfectly and accurately. This is the process of aligning the drone's internal sensors, such as the gyroscope, accelerometer, and magnetometer, with the real-world environment. A well-calibrated drone will fly smoothly, be responsive to controls, and be stable.
When to Calibrate:
- Initial Setup: It is very important to calibrate the drone before flying it for the first time.
- After a Crash or Hard Landing: Sometimes your drone might have a very bad experience in terms of impact, so recalibration may restore the performance of your drone.
- Moving to a New Location: You may fly near power lines or other major metal structures that give significant magnetic interference; you must recalibrate it.
- If the Drone is Behaving Erratically: If your drone is drifting, tilting, or not responding to controls as expected, calibration can help resolve these issues.
How to Calibrate Your Drone:
The specific calibration process may vary depending on your drone model and its accompanying app or software. However, here are the general steps involved:
- Select a Clear, Open Space: Look for a spot with no electromagnetic interference .
- Power Up Your Drone and Controller: Make sure both units are fully charged.
- Go into Calibration Mode: The process for going into calibration mode can be different from drone to drone. This is sometimes done via the drone's application or via specific button combinations through the controller.
- IMU Calibration: This is the process of aligning the internal sensors with the Earth's gravity. Usually, you are required to orient the drone flat, sideways, and upside down.
- Compass Calibration: This involves aligning your drone compass to the Earth's magnetic field. Normally, you will be asked to move the drone in a figure-eight pattern or in any manner that might be instructed in the application.
- Follow the On-Screen Instructions: Your drone's app or software will provide specific instructions for each calibration step. Carefully follow these instructions to ensure accurate calibration.
Tips for Successful Calibration
- Avoid calibrating too frequently, as over-calibration may degrade the drone’s components.
- Always follow the drone manufacturer’s specific calibration guidelines.
- Check for any error messages post-calibration to ensure the process is successful.
What's the Difference Between a Drone and a Quadcopter?
A drone is a broad term that describes any unmanned flying device that can operate autonomously or be controlled remotely. The drones are available in various configurations, such as fixed-wing, multi-rotor, and single-rotor designs, for use in applications that range from military to hobbyist photography.
A quadcopter, however, is a certain kind of drone. It is a rotary-wing aircraft that uses four rotors, each consisting of a motor and propeller, for lift and stability. Sometimes referred to as quadrotors, they are different from other drone types, such as fixed-wing aircraft or single-rotor helicopters, in that they do not have conventional engines or tail rotors.
How Far Can a Quadcopter Drone Fly?
The operating range of a quadcopter drone would depend on its design, communication system, battery capacity, and environmental conditions.
- Recreational Drones: Typically, they have a range of 1–5 kilometers or 0.6 to 3.1 miles. Examples include DJI Mini and other hobbyist drones.
- Professional Drones: High-performance quadcopters like the JOUAV PH-007 have a range of up to 10 kilometers, that is, 6.2 miles.
- Military and Industrial Drones: Advanced models used in military or industrial applications can exceed 30 kilometers (18.6 miles) using long-range communication systems.
Various factors like interference, obstacles, and even legal issues related to maintaining the line-of-sight limit the range effectively.
How High Can a Quadcopter Drone Fly?
Quadcopters can generally do high-altitude flights, but there are some legal and technical limits that need to be considered.
- Legal Restrictions: Most countries, through regulatory bodies like the FAA in the U.S., restrict flying drones to 120 meters (400 feet) above ground level to ensure safety in airspace.
- Technical Capabilities: Many quadcopters can technically ascend to 3,000–6,000 meters (9,842–19,685 feet).
However, flying at higher altitudes can lead to reduced performance due to thinner air, lower battery efficiency, and increased risks of signal loss.
How Long Can a Quadcopter Drone Fly?
Flight time can vary a lot, depending on the drone's battery capacity, its weight, and energy efficiency.
- Recreational Drones: Usually fly anywhere between 10 and 30 minutes. Entry-level models, like DJI Mini, can fly up to 25 minutes.
- Professional Drones: These quads can fly for 30–45 minutes on a single charge. Examples include the DJI Mavic 3, which provides up to 46-minute flying.
High-end industrial quadcopters, such as the JOUAV PH-007, can achieve extended flight times of over 85 minutes with advanced battery or hybrid power systems.
Wind, payload, and flying speed can be very influential on flight time.
How Fast Can a Quadcopter Fly?
They come in a variety of speeds, with different ones having different capabilities and uses.
- Recreational Quadcopters: Generally, speeds are from 20–50 km/h (12–31 mph).
- Racing Drones: Built for speed and agility, racing quadcopters can go faster than 150 km/h (93 mph).
- Professional Quadcopters: Maximum speed usually does not exceed 50–70 km/h (31–43 mph) because most of them focus on stability for applications such as filming and surveying.
Among the factors affecting speed are motor power, aerodynamic design, and wind conditions.
English
中文
