MicaSense RedEdge-P Multispectral Camera

Overview

The MicaSense RedEdge Panchromatic (RE-P) is our premium multispectral camera that captures calibrated, high-resolution multispectral and RGB images from a single flight for advanced analytics.

Benefits and Features

A robust, high-quality, powerful multispectral sensor, the RedEdge-P integrates specially designed optics, an industrial image sensor, and narrow-band scientific grade filters to achieve pixel-aligned output at previously unattainable resolutions while maintaining the RedEdge's traditional efficiency and reliability.

5.1 Megapixel Panchromatic Sensor

Its pansharpened resolution down to 2cm (0.8") at a flight height of 60m (197ft)

Optimised for Plant-level Detail

Provide solutions for industries such as environmental monitoring and research

Addition of CFexpress Memory Card

Allow faster capture speeds of 2-3 images per second

Synchronized Capture of RGB and Multispectral

Capture calibrated high-resolution multispectral and RGB imagery with an all-in-one imaging solution.

Data Results

Rededge-P can simultaneously capture up to six bands, enabling multiple high-resolution outputs such as RGB, crop vigor indices (NDVI, NDRE, etc), and high resolution panchromatic.

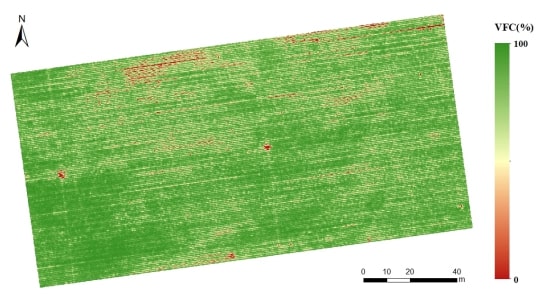

NDVI

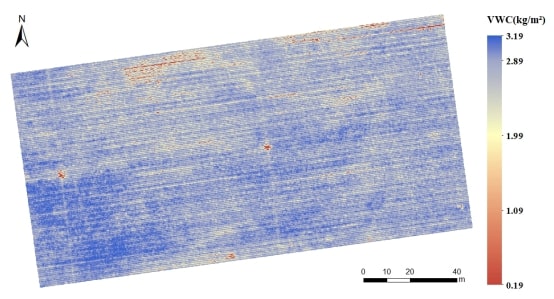

NDRE

Compatible Drones

This solution is compatible with a wide array of JOUAV drones, ranging from large CW-100 to small CW-007.

CW-007

A portable, integrated UAV platform that delivers exceptional reliability to our customers.

Learn More

CW-15

Multi-purpose and battery-operated intelligent VTOL drone

Learn More

CW-25E

Long Endurance Electric Fixed-wing VTOL Drone

Learn More

Technical Specifications

Specifications

Weight

363 g (12.8 oz.)
(RedEdge-P + WI-Fi + CF Express Card + DLS2 & Cables)

Dimensions

8.9 x 7.0 x 6.7 cm
(3.5in x 2.8in x 2.6in)

External Power

7.0 V - 25.2 V

Power Input

5.5/7.0/10W (standby, average, peak)

Sensor Resolution

1456 x 1088 (1.6MP per MS band)
2464 x 2056 (5.1MP panchromatic band)

Spectral Bands

Blue, green, red, red edge, near-IR
(global shutter, narrowband)

Wavelength (nm)

Blue (475 nm center, 32 nm bandwidth),
green (560 nm center, 27 nm bandwidth),
red (668 nm center, 14 nm bandwidth),
red edge (717 nm center, 12 nm bandwidth),
near-IR (842 nm center, 57 nm bandwidth)

RGB Color Output

5.1 MP (global shutter, aligned with all bands)
*with appropriate post-processing

Ground Sample Distance (GSD)

7.7 cm per pixel (per MS band) at 120m (~400 ft) AGL
3.98 cm per pixel (panchromatic band) at 120m (~400 ft) AGL

Capture Rate

Up to 3 captures per second raw DNG

Interfaces

3 configurable GPIO: select from trigger input, PPS input, PPS output, and top of frame signals. Host virtual button. USB 2.0 port for WiFi. Serial. 10/100/1000 Ethernet. CF Express for storage

Field of View

50° HFOV x 38° VFOV (MS)
44° HFOV x 38° VFOV (PAN)

Storage

CFexpress Card
