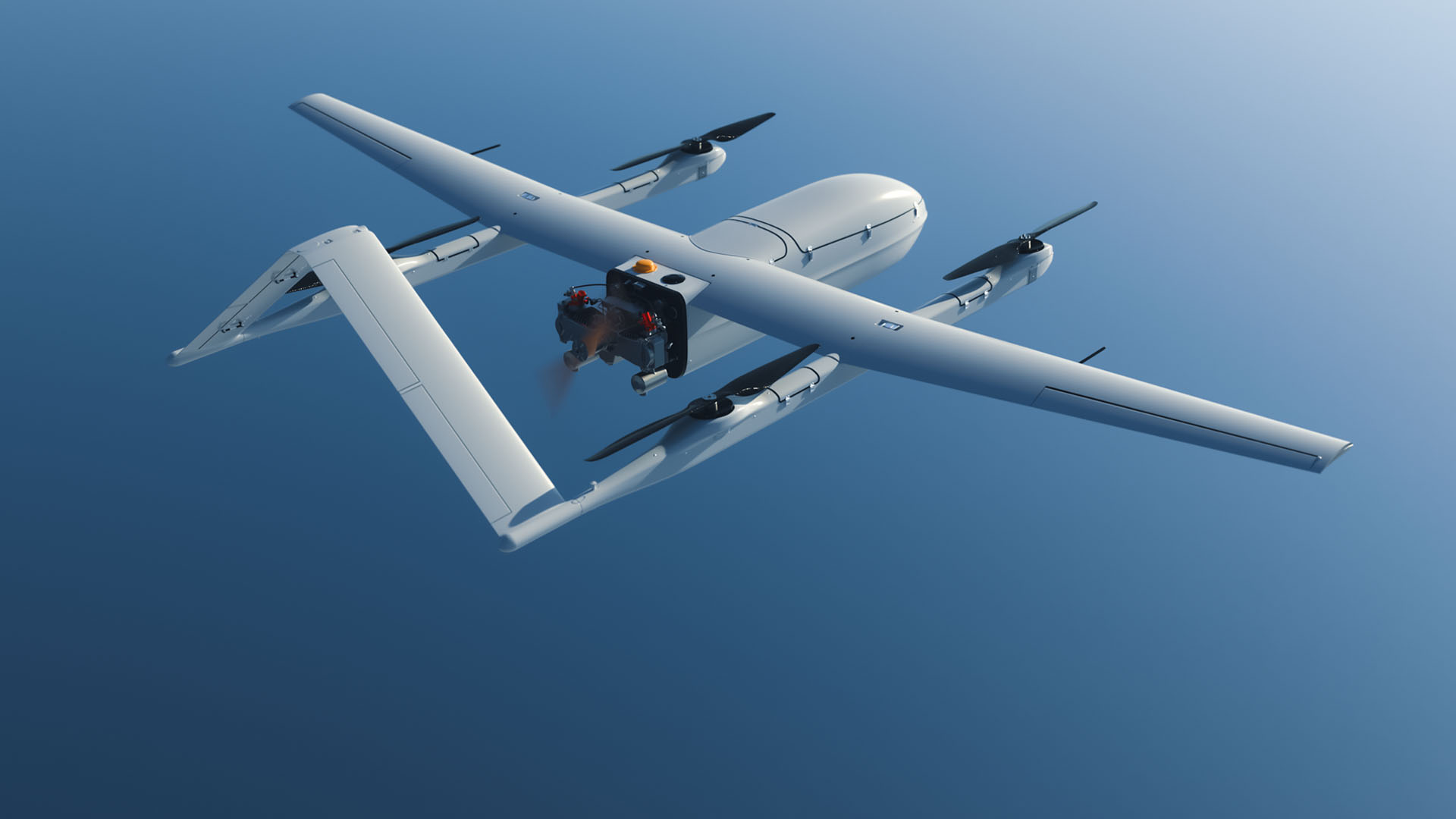

Designed for the toughest challenges, the CW-80E drone offers unmatched performance with a 25kg payload capacity, up to 10 hours of flight time, and exceptional long-range capabilities. This extra-large drone is perfect for large-scale operations like mapping, surveillance, and emergency response.
Modularized Design for Easy Deployment
The CW-80E’s modularized design allows for quick setup and disassembly. The system can be unfolded in 20 minutes and packed away in 15 minutes, with a team of four able to assemble it in less than 5 minutes. This compact design makes transportation easy, fitting comfortably in a small van for efficient mobility to various job sites.
Wide Coverage and Extended Range
The CW-80E offers industry-leading coverage with up to 11 hours of flight time when unloaded, and up to 10 hours with the MG-200E gimbal camera and 200km video link. The drone supports 100km or 200km video transmission, ensuring uninterrupted communication during long-range operations. Whether monitoring large areas or conducting remote inspections, the CW-80E provides reliable, long-distance connectivity.
Efficient Data Operation and Management
Thanks to the electrification upgrade, the CW-80E provides a digitally managed system, allowing real-time monitoring of flight data, equipment status, and health metrics through JOUAV’s Eagle Map. The onboard sensors and equipment, including cameras, LiDAR, and other high-precision tools, seamlessly transmit data back to the ground control platform for efficient processing and sharing.
Built-in Safety Features
The CW-80E is designed with an anti-jamming GPS to resist complex electromagnetic environments, making it ideal for electric power inspections, urban applications, etc. Its multi-sensor redundancy technology ensures safety with systems like triple IMU configuration, dual GNSS, differential antennas, and more, automatically activating in critical situations (e.g., low battery or loss of communication) to ensure a safe return.
Data Security with Advanced Encryption
The CW-80E ensures the security of your mission with AES-128 or AES-256 encryption for real-time data transmission and flight control communication. This level of encryption protects sensitive flight data and video feeds, preventing tampering and data theft to ensure safe and secure operations.
Regulatory Compliance for Safe Airspace Operations
The CW-80E is equipped with ADS-B and geofencing technology to help comply with regulatory standards. ADS-B provides pilots with situational awareness of nearby aircraft, while the e-fence feature ensures the drone stays within designated airspace, avoiding restricted zones and ensuring safe, legal flights.
Equipped with advanced automation, the CW-80E makes drone operations effortless. Its intelligent flight control system manages every phase of the flight, from takeoff to landing. Key automation features include:
- One-touch takeoff and landing for easy operation
- Self-detection and fault code system for real-time diagnostics
- Automatic return for low battery or lost signal, ensuring safe recovery
- Terrain following for consistent altitude over uneven terrain, ideal for mountainous or forested areas
- Intelligent tracking using deep learning algorithms to automatically follow dynamic targets—perfect for rescue operations or wildlife monitoring.
The CW-80E supports flexible control options, allowing one aircraft to be controlled by a single ground station, or one ground station to manage multiple UAVs simultaneously. It also supports relay control by multiple ground stations, making it adaptable to diverse mission requirements and team setups.
With a 25kg payload capacity, this large drone is compatible with a wide range of payloads. Whether for public safety, mapping, inspection, or emergency response, the CW-80E can carry multiple payloads simultaneously to meet the needs of various industries.
CA-503R Oblique Camera
- Full-frame five-lens system
- 220-megapixel total pixels, 36x24mm sensor size
- Straight 40mm/ Oblique 56mm focal length
- Dual 640GB onboard SSD with real-time photo streaming
- Supports real-time 3D modeling >>Learn More
iXM-100 RGB Camera
- Medium-format sensor
- 100MP resolution (11664x8750)
- 83dB dynamic range
- 3.76µm pixel size
- 3 frames per second capture rate >>Learn More
JoLiDAR-1500
- Up to 1500m of detection range
- Laser pulse repetition rate: 50-2000 KHz
- Integrated with 61MP full-frame RGB camera
- Capture synchronized point clouds and orthophotos
- Relative accuracy:1.5cm, absolute accuracy: 5cm@300m >>Learn More
MG-150E Gimbal Camera
- Visible Light Camera: 1080p resolution, 30x optical zoom
- Infrared Camera: 640x512 resolution, 50mm focal length
- Laser Rangefinder: 4,000m range, 2m accuracy
- Target Tracking: Continuous identification and tracking >>Learn More
SS-10 Airborne Satellite Communication
- Operating Frequency: Supports Ka or Ku bands
- Satellite Acquisition Time: ≤2 minutes; 360° unlimited azimuth with continuous rotation
- Elevation Range: -8° to +100° with continuous automatic tracking; Roll range: +20°
miniSAR
- Frequency: Ku-band
- Resolution: 0.3m
- Range: 6km
- Swath Width: 500m - 3000m
- Modes: Polarization, Interferometry, GMTI
Designed to perform in harsh conditions, the CW-80E offers IP54 protection, safeguarding it against dust and water. It can operate at altitudes up to 6000m and withstand wind resistance up to 17.1m/s in cruise mode. With an impressive temperature range of -20°C to 55°C, this drone thrives in extreme environments, ensuring reliable performance in any weather.
At JOUAV, we understand that every operation is unique. The CW-80E drone is fully customizable across its platform, payload, ground station, software, and cloud integration, ensuring it meets your exact mission requirements.
JOUAV offers handheld, portable and modular vehicle ground control station. You can choose different control devices according to the different environment and task.

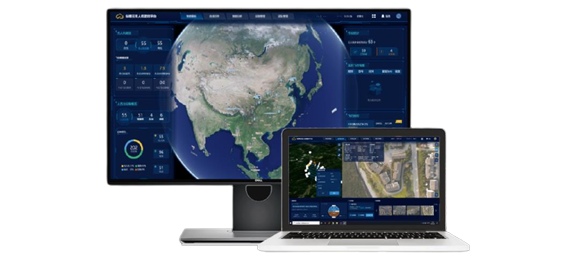

JOUAV provides one-stop UAV products, including the supporting software needed for the task. You can use these software to plan a flight path, control and manage the drone, track and identify targets, and see video and geo-data information from the drone in real time.
3.09m
5.16m
110kg
100km / 200km（in line-of-sight conditions)
RTK/PPK
≤25kg
600min (with MG-200E + 200km radio link)
97-120km/h
13.9-17.1m/s
5000m
3000m
3cm
1cm+1ppm
JOUAV drones widely used in mapping and geographic information, inspection, security monitoring, emergency and other fields of a variety of application scenarios.
We are committed to ensuring that every customer can get timely and professional technical support. Engineers can provide customers with remote product installation guidance, software updates, and UAV flight technical support; they can also arrive at the scene to provide services.
