CW-25 Overview

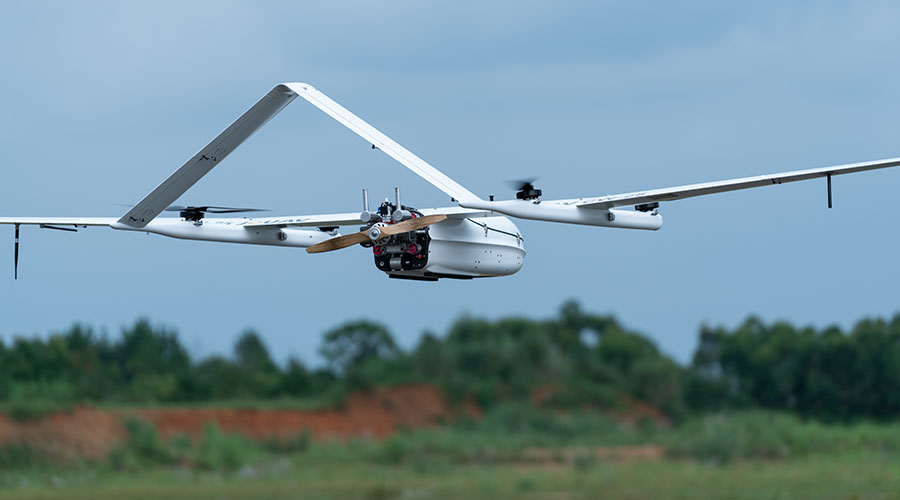

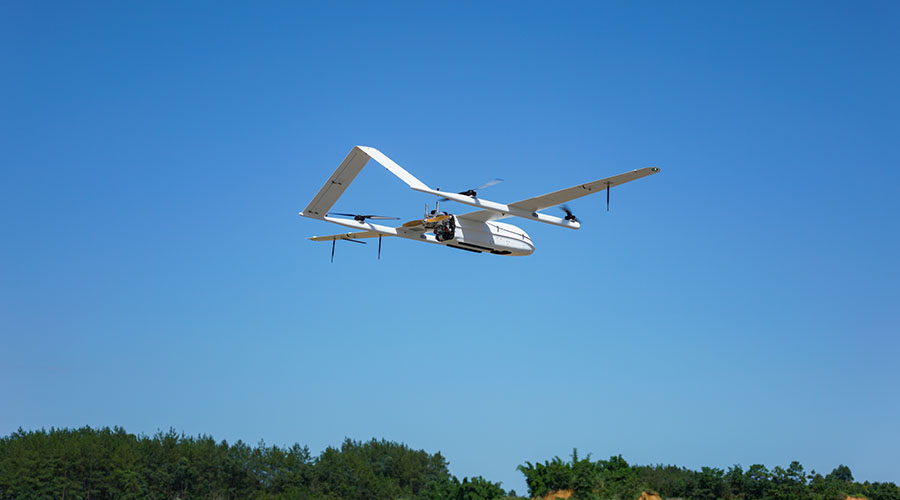

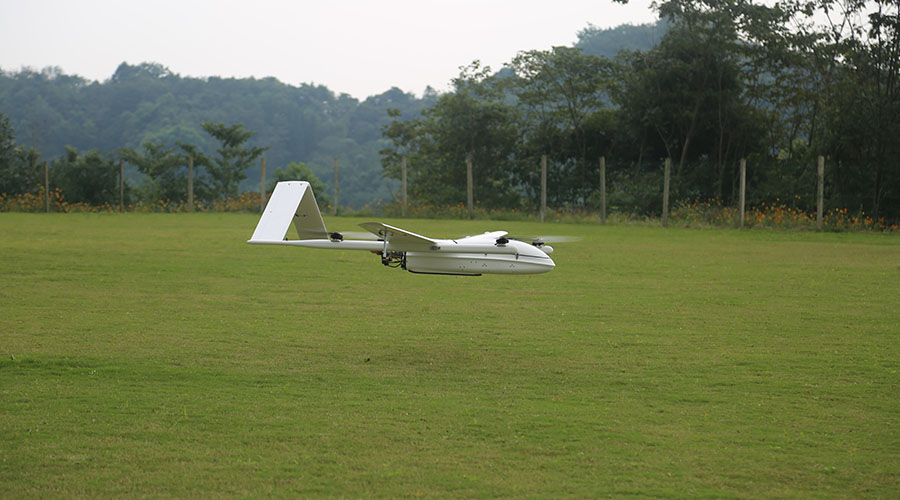

The CW-25 is a hybrid (battery and petrol) VTOL fixed-wing UAV platform designed for large-area missions. The CW-25 has a long service life, is fast, has a large payload, is structurally stable and reliable, and can fly continuously at high altitudes.
Trusted by
Benefits and Features
With the continuous technical updates , our drones bring many actual benefits to our customers, including saving time and cost, getting more comprehensive data, keeping personnel safe, etc.
Outstanding Performance
Vertical takeoff and landing, 4500m max take off attitude, 7000m max flight ceiling, up to 200km data link and 6 hours endurance.
Advanced Flight Control and Navigation System
Integrated high precision MEMS inertial sensors, high-performance CPU, Dual-GPS position system, powerful EFI engine for large-area missions.
Modular design
Utilizes quick connection structures and disassembly to 11 parts for transportation in SUV type vehicle.
Fully Auto
No need of radio control, one-button take-off and landing, safe and easy, with less than 15 cm of landing accuracy.
Multiple Payload Sensor
Up to 6kg payload capability with multiple options, such as aerial camera, LiDAR , Mini Sar , EO/IR gimbal camera, aeromagnetic sensor etc.
RTK and PPK Function
This means centimeter-level autonomous vertical landing and high-precision POS data.
High Flight Safety
Dual GPS and Dual compass, advanced flight control and navigation system, auto return if GPS timeout, data link timeout etc.
Super Environmental Adaptability
Fly in high altitude, high humidity, low temperature, and light rain condition with self-heating airspeed pitot tube.
Optional Payloads
JOUAV UAV can carry many types of mission payloads. You can choose different cameras according to the actual mission needs, including LiDAR system, industrial aerial camera, oblique camera system, gimbal system and SAR. Simple and flexible, multi-purpose.
MG-120E EO/IR Gimbal Camera
Lightweight 3-axis gimbal camera with 30X optical zoom and thermal sensors
MG-150E EO/IR/LR Gimbal Camera
30x optical zoom and thermal imaging drone gimbal camera with 3km laser rangefinder
Ground Control Stations
JOUAV offers handheld, portable and modular vehicle ground control station. You can choose different control devices according to the different environment and task.
TC-200 Handheld Ground Control Station
An all-in-one handheld UAV ground control station for controlling unmanned vehicles and payloads
GCS-303 Ground Control Station
A portable dual-screen ground control station to control drone flight, recovery, and payloads.
Supporting Software
JOUAV provides one-stop UAV products, including the supporting software needed for the task. You can use these software to plan a flight path, control and manage the drone, track and identify targets, and see video and geo-data information from the drone in real time.
Eagle Map Drone Surveillance Software
An intuitive software solution to deploy drones' security and surveillance operations.
FlightSurv Drone Mapping software
Cloud-based drone mapping software for flight planning, data collection, processing, and analysis.
Technical Specifications
Hardware

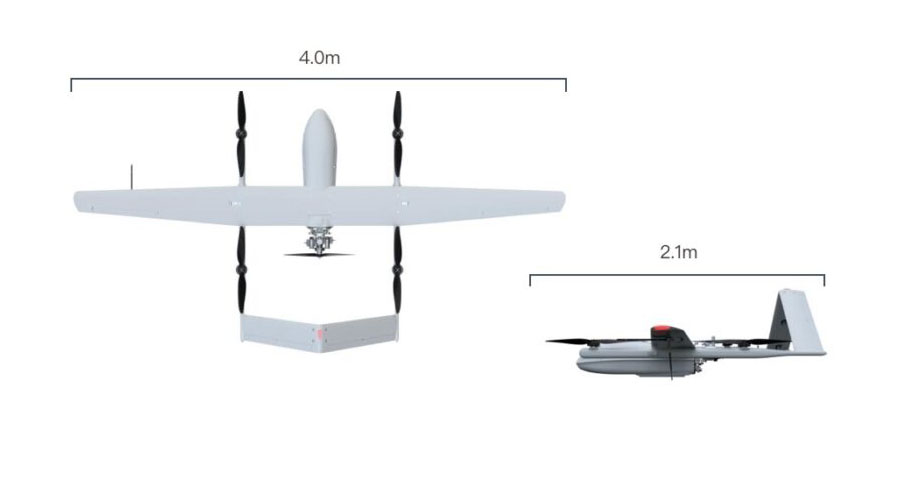

Fuselage
2.18m
Wingspan
4.07m
MTOW
29.5kg
Radio Link
50km / 100km（Optional）
DGPS
RTK/PPK
Packing Size
1550×690×690mm
Flight Performance
Endurance
330min-360min
Cruise Speed
82.8km/h
Wind Resistance
13.9-17.1m/s
Ceiling
6500m
Max Takeoff Altitude
4500m
V Positioning Accuracy
3cm
H positioning Accuracy
1cm+1ppm
* All performance data in the foregoing pages are theoretical values obtained by JOUAV® internal laboratories through tests carried out under particular conditions. For more information on the specific testing conditions, refer to the aforementioned product details. Actual performance may vary owing to differences in individual product configuration, software versions, application conditions, and environmental factors. All data is subject to actual usage.
Industry Applications
JOUAV drones widely used in mapping and geographic information, inspection, security monitoring, emergency and other fields of a variety of application scenarios.
Professional Technical Support
We are committed to ensuring that every customer can get timely and professional technical support. Engineers can provide customers with remote product installation guidance, software updates, and UAV flight technical support; they can also arrive at the scene to provide services.
Complete drones flight training
Professional after-sales engineer team, online or on-site support
Well documented support and videos
Local distributor support
Worry-free package and professional insurance
Warranty and return to factory repair
