CW-007 Portable Battery-operated Light Weight UAV
55min
Max Flight Time
61.2km/h
Cruising speed
6000m
Max Service Ceiling
1kg
Max Payload
Home products drone CW-007 Portable Battery-operated Lightweight UAV
CW-007 Overview
Backpack Design, integrated system, the combination of quick-insert payload and software guarantee the accuracy of data of any solutions. The new intelligent power management module simplifies the user's workflow and is ideal for single controlled.
    drone
    drone
    drone
    drone
    drone
    drone
    Trusted by
    partner
    partner
    partner
    partner
    Benefits and Features
    With the continuous technical updates , our drones bring many actual benefits to our customers, including saving time and cost, getting more comprehensive data, keeping personnel safe.
    product-detail
    VTOL
    Vertical takeoff and landing, greatly reduce terrain dependence and adapts to most places.
    product-detail
    Light and Flexible
    The drone is less than 7 kg (plus packaging less than 25 kg), which is easy to carry by single person.
    product-detail
    Outstanding Performance
    4500m max take off attitude, 6000m max flight ceiling, 55min endurance, exposure delay within 10ms.
    product-detail
    Modular design
    Set up or take down in less than 2 minutes without any tools, get started quickly.
    product-detail
    Fully Auto
    One-button take-off and land, safe and simple, landing accuracy within 10cm.
    product-detail
    High Efficiency
    Single flight can finish 4 km2 of 1:500 scale, 6 km2 of 1:1000 scale, 12 km2 of 1:2000 scale.
    product-detail
    RTK and PPK Function
    This means centimeter-level autonomous vertical landing and high-precision POS data.
    product-detail
    High Flight Safety
    Dual GPS and Dual compass, it can smoothly switch to the backup unit if there is a fault.
    Optional Payloads
    JOUAV UAV can carry many types of mission payloads. You can choose different cameras according to the actual mission needs, including LiDAR system, industrial aerial camera, oblique camera system, gimbal system and SAR. Simple and flexible, multi-purpose.
    product
    CA-103 Aerial Camera
    61 MP full-frame camera for land surveying, urban planning
    Learn More
    product
    MS600 V2 Multispectral Camera
    6-channel high-resolution multispectral camera
    Learn More
    product
    CW Series Aeromagnetic Surveying System
    Intelligent, efficient and cost-effective aeromagnetic measurement system
    Learn More
    Ground Control Stations
    JOUAV offers handheld, portable and modular vehicle ground control station. You can choose different control devices according to the different environment and task.
    product
    TC-200 Handheld Ground Control Station
    An all-in-one handheld UAV ground control station for controlling unmanned vehicles and payloads
    Learn More
    product
    GCS-303 Ground Control Station
    A portable dual-screen ground control station to control drone flight, recovery, and payloads.
    Learn More
    Supporting Software
    JOUAV provides one-stop UAV products, including the supporting software needed for the task. You can use these software to plan a flight path, control and manage the drone, track and identify targets, and see video and geo-data information from the drone in real time.
    product
    Eagle Map Drone Surveillance Software
    An intuitive software solution to deploy drones' security and surveillance operations.
    Learn More
    product
    FlightSurv Drone Mapping software
    Cloud-based drone mapping software for flight planning, data collection, processing, and analysis.
    Learn More
    Technical Specifications
     Hardware

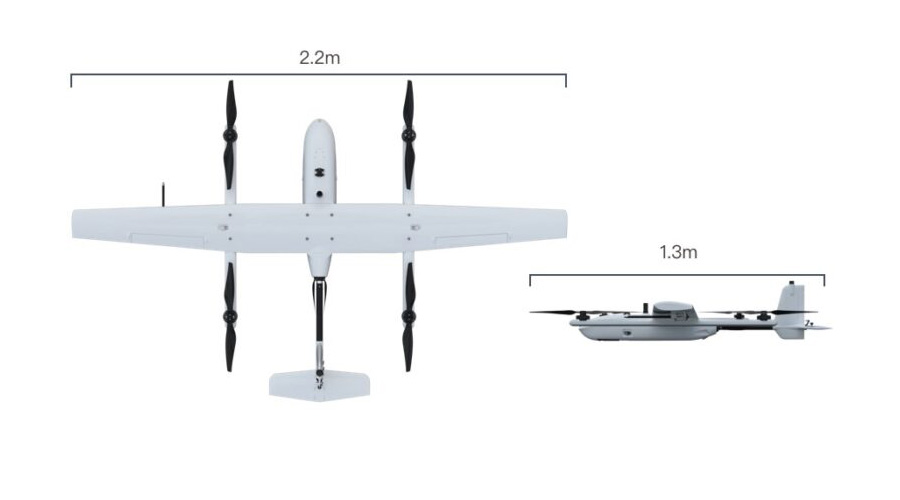

     Fuselage
    1.3m
     Wingspan
    2.2m
     MTOW
    6.8kg
     Electro Motor
    Low noise，brushless
     Payload
    1 kg
     Packing Size
    1200×500×400mm
     Flight Performance
     Endurance
    55min
     Cruising Speed
    61.2km/h
     Wind Resistance
    10.8-13.8m/s
     Ceiling
    6000m
     Max Takeoff Altitude
    4500m
     V Positioning Accuracy
    3cm
     H positioning Accuracy
    1cm+1ppm
     * All performance data in the foregoing pages are theoretical values obtained by JOUAV® internal laboratories through tests carried out under particular conditions. For more information on the specific testing conditions, refer to the aforementioned product details. Actual performance may vary owing to differences in individual product configuration, software versions, application conditions, and environmental factors. All data is subject to actual usage.
