Overview
Designed for photogrammetry flight missions, CA-103 Aerial Camera offers a remarkable accuracy and efficiency. This high-resolution sensor combines a wide-angle JAL-35 lens, shock absorber, and high-contrast images for accurate color reproduction even in low-light conditions.
Benefits and Features
With the back-illuminated structure and effective noise reduction techniques, CA-103 Aerial Camera delivers extremely low-noise and high sensitivity performance while maintain high speed continues shooting and much, much more.
61.0MP Full-frame Back-illuminated Exmor R CMOS Sensor
Exibit incomparable high resolution, high sensitivity, and low noise
Wide Standard ISO 100-32000 Range
Can be used in sports low light or smaller aperture
Vast Mapping Coverage
CA-103 can change the orientation during the flight to obtain a wide field of view and reduce the blurriness of images
Well-designed Shock Absorbing Bottom Plate
The shock-absorbing base plate is designed with 4-corner protection to ensure a high-quality picture from the camera
Greater Buffer Memory and System Speed
Because of greater buffer memory and system speed, CA-103 allows you to capture up to 10 images in continuous shooting
Easy to Connect
The body mounting are designed with a self-locking drawer construction that allows for easy connection and removal from the drone
Data Results
The raw data acquired by CA-103 aerial cameras can be processed into DEMs, DOMs, DLGs, 3D models and other surveying and mapping data.
DOM

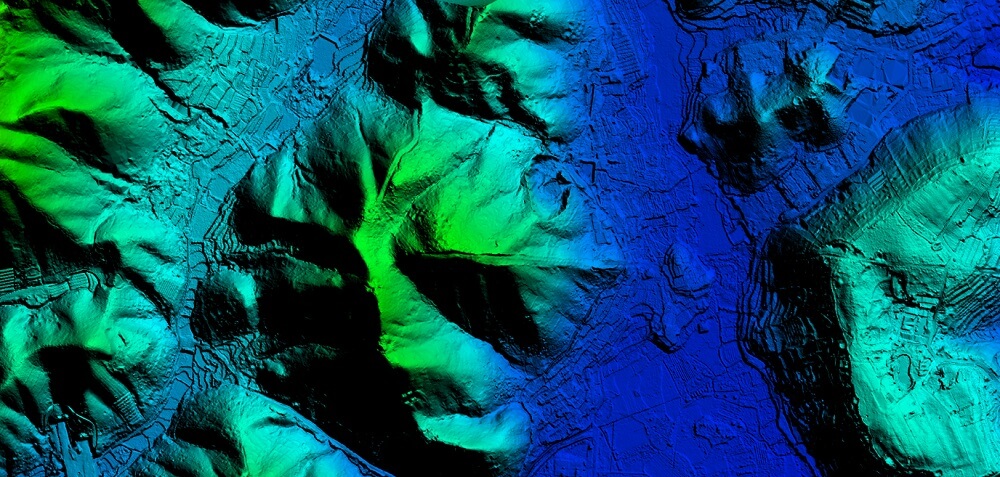

DEM
DSM
Compatible Drones
Developed and manufactured by JOUAV, the CA-103 aerial camera has good connectivity to facilitate wider integration, which is compatible with JOUAV's wide range of drones.
CW-007
A portable, integrated UAV platform that delivers exceptional reliability to our customers.
Industry Applications
The CA-103 drives high-resolution full-frame imagery in industrial applications, where it is widely used in mining surveying, powerline inspection, and construction mapping, etc.
Technical Specifications
Sensor
CCD NO.
1
CMOS Size
35.7mm×23.8mm（35mm full frame）
Focus Sensor
Exmor R CMOS
Pixel Size
Approx. 3.756um
Effective Pixels NO.
61.0 megapixels
Image Resolution
9504×6336
Photography
ISO
Still/Dynamic Images：ISO 100-32000 Auto：ISO 100-12800
Shutter Speed
Still Images：1/8000sec - 30sec，B
Focus Lens（mm）
35mm
Image Format
RAW,JPEG( Extra fine，Fine，RAW)
Shooting Modes
Single Shooting, Continuous shooting (Hi+/Hi/Mid/Lo selectable)
Continuous Shooting
Hi+ ：MAX. 10 Photos/s Hi ：MAX. 8 Photos/s Mid：MAX. 6 Photos/s Lo：MAX. 3 Photos/s
Exposure Interval
≮0.8s （＞Continuous 50 photos） ≮1.2s （＞Continuous 100 photos）
Configuration
Lens Compatibility
Sony E-mount lenses
Storage
Photo：256GB×1 TF SDHC memory card POS：16GB×1 TF SDHC memory card
Explosure
High pulse exposure/manual single shot
Differential GPS
High pulse feedback
Physical
Power Voltage
12～36V
Weight
Approx. 420g
Dimension
119 mm × 78.5 mm × 48.4 mm
Mounting
M3 screw mounting on bottom
Working Temperature
0℃-40℃
* All performance data in the foregoing pages are theoretical values obtained by JOUAV® internal laboratories through tests carried out under particular conditions. For more information on the specific testing conditions, refer to the aforementioned product details. Actual performance may vary owing to differences in individual product configuration, software versions, application conditions, and environmental factors. All data is subject to actual usage.
