LiDAR vs. Photogrammetry: The Ultimate Showdown for 3D Mapping (2024)

Drones have changed the game for surveying lately, giving us a quick, efficient, and budget-friendly way to gather aerial info.

Now, if you're in the surveying and mapping world, you've probably dealt with the choice between LiDAR and photogrammetry. It's not just a beginner's dilemma – even the pros debate this.

Both LiDAR and photogrammetry dish out 3D data, but figuring out which one's better is like picking your favorite ice cream flavor – not easy.

In this article, we're breaking down the differences between LiDAR and photogrammetry, so you'll have a clear idea of what works best for your worksite.

Let's dive in.

What is LiDAR and How Does It Work?

LiDAR, an acronym for Light Detection and Ranging, stands at the forefront of modern remote sensing technology, playing a pivotal role in various industries such as mining, forestry, agriculture, and construction.

Though the concept of LiDAR has been in existence for several decades, recent advancements have made it compact enough to be seamlessly integrated into the payload of drones, unlocking new realms of data acquisition and analysis.

At its core, LiDAR is an active remote sensing technology that utilizes lasers to measure the distance between the LiDAR sensor and the target object.

This process involves the emission of a laser beam, which subsequently bounces off objects in its path.

By precisely measuring the time it takes for the laser pulse to return, LiDAR can determine the distance to the object with exceptional accuracy.

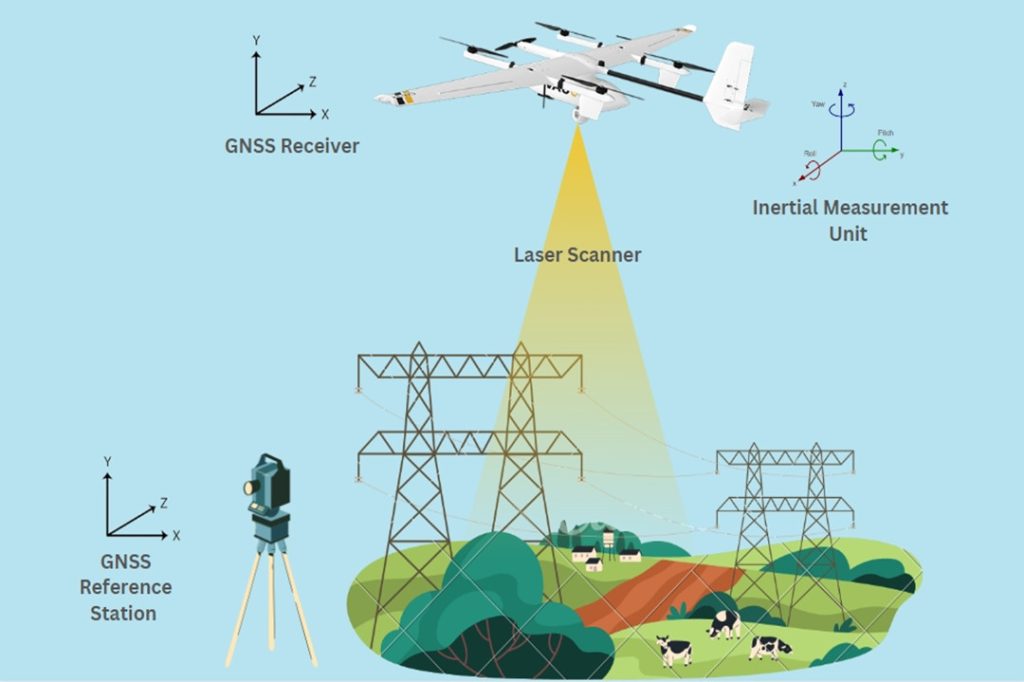

The LiDAR system doesn't work in isolation. It collaborates with other high-precision systems to create a comprehensive representation of the terrain and its topography.

Global Navigation Satellite System (GNSS) data, obtained from satellites, aids in precisely locating the LiDAR sensor.

Additionally, Inertial Measurement Units (IMUs) contribute by providing information about the sensor's orientation and motion.

This amalgamation of technologies allows LiDAR to generate a detailed and accurate 3D point cloud, capturing the shape and location of objects in its operational environment.

What is Photogrammetry and How Does It Work?

Photogrammetry, an age-old imaging technique revitalized for the digital era, is a passive measurement method that constructs 3D models by analyzing multiple photos of an object or scene.

Since its inception in the 19th century, it has evolved into a pivotal tool across diverse industries.

The process begins with the acquisition of numerous photographs capturing the target from different perspectives.

These images serve as the raw data that will be processed to construct a 3D model.

Specialized software plays a pivotal role in this intricate procedure, meticulously scrutinizing each photograph to calculate its precise position and orientation within the three-dimensional realm.

By combining this abundance of positional data, photogrammetry unfolds a detailed and accurate 3D model, offering a comprehensive view of the captured environment.

Photogrammetric surveys yield raw images, precise orthophoto maps, digital surface models (DSMs), and detailed 3D models.

Raw images capture visual data, orthophoto maps correct distortions, DSMs provide elevation insights, and 3D models offer a complete representation with texture, shape, and color.

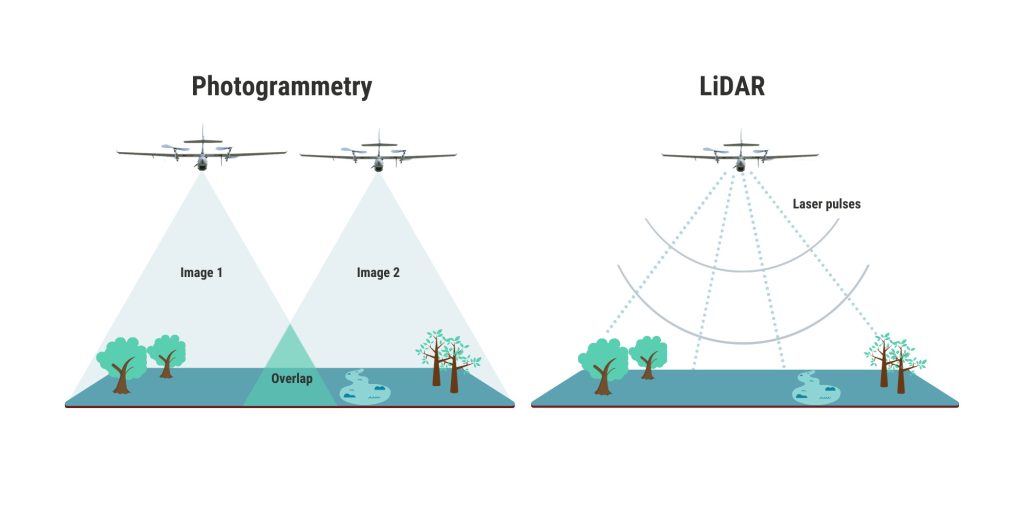

LiDAR vs. Photogrammetry: Pros and Cons

In 3D mapping and spatial analysis, LiDAR and photogrammetry emerge as prominent technologies, each with unique strengths and limitations.

Here's a table summarizing the key differences between LiDAR and photogrammetry:

Feature	LiDAR	Photogrammetry
Accuracy	High	Moderate
Vegetation penetration	Yes	No
Light dependence	No	Yes
Cost	High	Low
Color information	Limited	High
Ease of use	Moderate	Easy
Versatility	Moderate	High
Processing Time	Fast	Slow

LiDAR

Pros:

Precision and Accuracy: LiDAR stands out for its exceptional precision and accuracy in distance measurements. It excels in capturing intricate details with minimal margin for error, making it a preferred choice for applications demanding high accuracy.
Data Density: LiDAR systems generate dense point clouds, providing a wealth of spatial information. This high data density allows for detailed and intricate mapping, especially in complex terrains or urban environments.
Penetrates Vegetation: LiDAR can penetrate through canopy cover and thick vegetation, capturing detailed information about the bare ground underneath. This is particularly advantageous in forestry, environmental monitoring, and terrain analysis.
Nighttime Operation: LiDAR operates effectively during nighttime or low-light conditions. Its ability to emit its light source (laser beams) ensures reliable data acquisition even when traditional optical methods may falter.

Cons:

High Cost: The operational complexity and need for sophisticated components make LiDAR solutions expensive, often reaching hundreds of thousands of dollars. The traditional bulkiness of LiDAR sensors, coupled with the demand for larger drones to carry heavier payloads, further contributes to the substantial expense.
Limited Texture and Color Information: While LiDAR excels in distance measurements, it may lack the capability to capture rich textures and color details present in the environment. This limitation can be a drawback in applications where visual aesthetics are essential.
Expertise for Post-Processing: The post-processing of LiDAR data demands a level of expertise beyond basic training. It often requires specialized knowledge to extract meaningful information from the voluminous point cloud data, potentially complicating the workflow.

Photogrammetry

Pros:

Cost Effective: Photogrammetry is often more cost-effective than LiDAR, making it an attractive option for projects with budget constraints. The use of commercial drones and cameras contributes to its affordability.
Rich Textures and Colors: Photogrammetry excels in capturing rich visual details, including textures and colors. This makes it advantageous in applications where a visually realistic representation of the environment is crucial.
Flexible Workflow: Photogrammetry can adapt to various drone platforms and camera setups. This flexibility allows users to tailor their approach based on the specific requirements of a project, enhancing versatility.
Easy to Learn: Compared to LiDAR, photogrammetry is generally considered more user-friendly. The learning curve is often less steep, enabling users with varying levels of expertise to generate meaningful 3D models.

Cons:

Lower Accuracy: Photogrammetric accuracy is influenced by factors such as sensor size, aperture, resolution, and focal length, combined with flight altitude. Achieving absolute accuracy often requires the integration of ground control points or the use of an RTK or PPK-enabled drone.
Vegetation Occlusion: Dense vegetation can obstruct the view of key features in photogrammetry. Unlike LiDAR, which can penetrate through foliage, photogrammetry may struggle to capture detailed information in areas with significant vegetation cover.
Require Good Lighting: Adequate lighting conditions are crucial for successful photogrammetry. Poor lighting can result in suboptimal image quality, potentially affecting the accuracy and visual appeal of the final 3D model.
Processing Time: Photogrammetry, especially when dealing with large datasets, can have longer processing times. This consideration is important in time-sensitive projects where rapid results are imperative.

Ultimately, the best way to choose between LiDAR and photogrammetry is to consider your specific needs and budget. If you need the highest possible accuracy and can afford the cost, LiDAR is the way to go. However, if you're on a budget or need high-quality visual data, photogrammetry may be a better option.

LiDAR vs. Photogrammetry: Which is More Accuracy?

When choosing between LiDAR and photogrammetry for geospatial surveying, the debate inevitably centers around accuracy. Both methods offer reliability when executed meticulously.

To discern their comparative strengths, a closer examination of absolute and relative accuracy is essential.

Absolute (Vertical) Accuracy

Absolute accuracy gauges the precision of an object's or feature's position on the Earth's surface in mapping data. It ensures the alignment between mapped points and their real-world geographic coordinates.

Relative (Vertical) Accuracy

Relative accuracy measures the precision of the positional relationships between different objects or features in mapping data. It assesses the accuracy of the relative positions of points within the same scene, regardless of their absolute position on the Earth's surface.

LiDAR Accuracy

LiDAR boasts high precision, with an anticipated ranging accuracy of 0.5 to 10 millimeters relative to the sensor. Mapping accuracy reaches up to 1 centimeter horizontally (x, y) and 2 centimeters vertically (z).

Point cloud density, the number of points per unit area measured by LiDAR, is key to accuracy, with higher densities yielding more precise maps.

A notable example is the JOUAV CW-25E VTOL UAV equipped with PPK and RTK modules, carrying the JoLiDAR-1500.

This setup generates highly accurate, true-color point clouds with a point density ranging from 50 to 200 points/square meter, providing a typical absolute accuracy of 2-3 cm vertically.

Mounting the JoLiDAR-1500 on a multi-rotor vehicle like the PH-20 further enhances point density and resulting point cloud accuracy.

Flying at low speeds and low altitudes, this configuration achieves point densities between 70 and 500 points/square meter, enabling measurements at 1-centimeter intervals and achieving an absolute horizontal accuracy of about 1 centimeter.

LiDAR's accuracy is attributed to laser pulses directly measuring distances, eliminating errors in manual measurements.

This, coupled with integration with GNSS data, helps provide a high level of vertical accuracy for your digital terrain maps.

LiDAR excels in achieving absolute accuracy, making it an ideal solution for creating realistic models of the bare earth by accounting for elevation and vegetation. With its high data point density, surveyors can generate reliable data sets, and the laser pulse rate plays a crucial role in this.

For instance, a higher pulse rate, such as the JoLiDAR-1500's collection of 1.8 million points per second, allows for more detailed models, reducing the number of flights needed to cover a specific area.

However, it's important to note that LiDAR systems are complex, with various components each contributing to accuracy.

Ranging errors in LiDAR sensors, horizontal and vertical position errors in GNSS, roll, pitch, and heading errors in INS, and other factors need to be considered.

In conclusion, despite complexities and various factors affecting accuracy, LiDAR generally outperforms photogrammetry in producing more detailed and accurate scans. The precision and versatility of LiDAR make it a preferred choice for intricate mapping applications.

Photogrammetry Accuracy

However, this is not to say that photogrammetry is not an accurate measurement solution.

Certain UAV photogrammetry systems can deliver outputs with horizontal (x-y) accuracy as fine as 1 cm (0.4 inches) and elevation (z) accuracy within the same range.

Particularly in areas devoid of dense forest canopy, photogrammetry outshines aerial LiDAR in terms of horizontal accuracy.

Now, achieving such precision isn't a walk in the park. You need specialized payloads armed with the right image sensors and lenses to capture the nitty-gritty details. It's not just a pixel game; it's about finding that sweet spot between sensors and lenses.

Even two cameras flaunting the same megapixel count but with different-sized sensors can dish out different levels of image quality and accuracy.

Optimal accuracy also relies on meticulous mission planning and post-processing. A well-planned mission with adequate image overlap enhances precision and facilitates superior error correction.

High-end UAS, coupled with specialized mission planning and post-processing workflows, play a pivotal role in ensuring the collection of high-quality data that translates into accurate results.

Nevertheless, without the aid of ground control points or RTK- or PPK-enabled UAVs, achieving absolute accuracy in photogrammetry becomes challenging. Shadows, occlusions, and the texture of the surveyed object are additional factors that can impact photogrammetric accuracy.

When all the necessary elements align, photogrammetry excels in terms of relative accuracy.

In contrast, LiDAR stands out by not necessitating ground control points for accurate data acquisition. This stands as a distinct advantage, especially considering the time-consuming nature of setting up GCPs.

LiDAR vs. Photogrammetry Cost

LiDAR tends to be on the pricier side compared to photogrammetry, largely due to the specialized components and advanced technology it requires for drone implementation. The cost variations between the two technologies are noticeable across different facets.

Firstly, the drones themselves: LiDAR-equipped drones come with a higher price tag, ranging from $50,000 to $350,000. This is a reflection of the need for specialized components inherent to LiDAR technology. Conversely, photogrammetry drones are more budget-friendly, falling within the range of $2,000 to $20,000.

Moving on to comprehensive systems, the disparity continues. A high-end photogrammetry system typically costs between $20,000 and $30,000. In contrast, just the sensor for LiDAR systems hits around $100,000. For lightweight drone LiDAR payloads, excluding the drone, the cost falls between $65,000 and $100,000.

Considering drone services, LiDAR services incur higher expenses. The hourly rates for LiDAR drone services range from $300 to $1,000, while photogrammetry-based drone services are comparatively more affordable, averaging between $150 and $500 per hour.

In terms of project-specific costs, photogrammetry emerges as the more cost-effective option. Services covering a 1,100-acre area using photogrammetry range from $1,600 to $1,700, equating to roughly $1.50 per acre. On the other hand, LiDAR data special request areas involve higher costs, starting at $100 for requests up to 50 acres and an additional $2 per acre thereafter, totaling around $4 per acre.

Other Differences Between LiDAR and Photogrammetry

Apart from accuracy and cost considerations, there are several other specifications to compare between LiDAR and photogrammetry, each influencing their suitability for different applications:

Resolution

LiDAR and photogrammetry, pivotal in geographic information acquisition, diverge significantly in resolution, a critical factor influencing technology selection.

LiDAR data manifests as a point cloud, its resolution contingent upon point density, quantified in points per square meter (pts/m²) or points per square foot (pts/ft²). LiDAR point densities vary considerably, ranging from 50 to 200 pts/m² (UAV-based).

In contrast, photogrammetry's relationship with point cloud density exists, but it isn't a direct indicator. Photogrammetric point densities are generally lower, particularly in the case of UAV-based systems, typically falling within the range of 5 to 20 pts/m².

In photogrammetry, the Ground Sampling Distance (GSD) serves as a critical measure, quantifying the distance between the camera sensor and the ground. A lower GSD signifies higher resolution, typically measured in centimeters per pixel.

While LiDAR lacks a direct GSD application, it can be estimated indirectly through point density, e.g., 50 pts/m² roughly corresponding to a 2 cm GSD.

Photogrammetric GSD directly derives from image resolution and flight parameters, ranging from millimeters to centimeters. In UAV projects, GSD typically hovers between 2-5 cm.

While LiDAR excels in point cloud density, photogrammetry balances this with strategically placed points and a visually rich texture that can offer a resolution surpassing that of LiDAR in certain contexts.

Coverage

LiDAR stands out for its superior coverage when compared to photogrammetry.

Fixed-wing drones, equipped with LiDAR payloads, exhibit remarkable efficiency in surveying vast ground areas, covering up to 10 square kilometers in a single flight.

This is made possible by LiDAR's capability to leverage a broader scanning angle, allowing for comprehensive data collection across horizontal and vertical dimensions.

In contrast, cameras are often limited by their narrower field of view, necessitating multiple shots and intricate stitching processes to achieve a comparable coverage area.

Leaf Penetration

While neither LiDAR nor photogrammetry sensors physically penetrate through the leaves, LiDAR has a unique capability to glean valuable information about the ground beneath a dense canopy.

In LiDAR, emitted laser beams are directed toward the forested area. Some of these beams penetrate through the leaves, reach the forest floor, and then bounce back up to the sensor. This unique capability allows LiDAR to effectively "see through" the gaps between leaves, providing detailed terrain information in areas with tightly woven canopies.

In contrast, photogrammetry relies on photographs. In densely wooded areas with a thick canopy, the darkness and shadows created by dense tree stands limit the amount of ground information that can be gathered. Photogrammetry is less effective in capturing terrain details under heavy canopies due to the obstructed view caused by shadows and the lack of direct light.

Data Acquisition Speed

LiDAR outpaces photogrammetry by swiftly collecting millions of points per second, making it ideal for efficiently mapping large areas.

With only 20-30% image overlap needed between flight lines, LiDAR streamlines the process, capturing detailed terrain information effectively.

In contrast, photogrammetry's reliance on multiple overlapping images, requiring 60-90% overlap, can be time-consuming, especially in larger or complex terrains.

LiDAR's speed advantage in precise terrain data collection makes it the more time-efficient choice for applications prioritizing swift data acquisition.

Data Processing Time

LiDAR data processing is typically swift. Since it involves direct distance measurements, post-processing primarily entails tasks such as noise filtering, point organization, and potential georeferencing.

These calculations are straightforward and efficiently handled by modern algorithms. The raw data requires only a brief calibration period, usually between 5 and 30 minutes, to yield final results.

In contrast, photogrammetry involves the reconstruction of 3D models from overlapping images, a process requiring intricate algorithms for feature matching, 3D coordinate calculation, and mesh generation. These computations can be computationally demanding, especially with high-resolution images or complex scenes.

Photogrammetry's data processing is time-consuming and necessitates powerful computers to handle operations on gigabytes of images. Consequently, the time spent in the field can be multiplied by 5-10 fold for the data processing phase.

3D Data Output

Both LiDAR and photogrammetry capture the real world in 3D, but they do so in different ways, leading to distinct types of outputs. Here's a breakdown of the key differences:

Point Cloud

The primary output of LiDAR is a point cloud, a vast collection of individual points representing the position and intensity of reflected laser pulses. These points accurately represent the surfaces and features they've bounced off, providing a rich dataset for analysis.

While photogrammetry doesn't directly generate point clouds, it can be used to derive them from the reconstructed 3D model through post-processing. These derived point clouds are typically less dense and accurate than pure LiDAR point clouds.

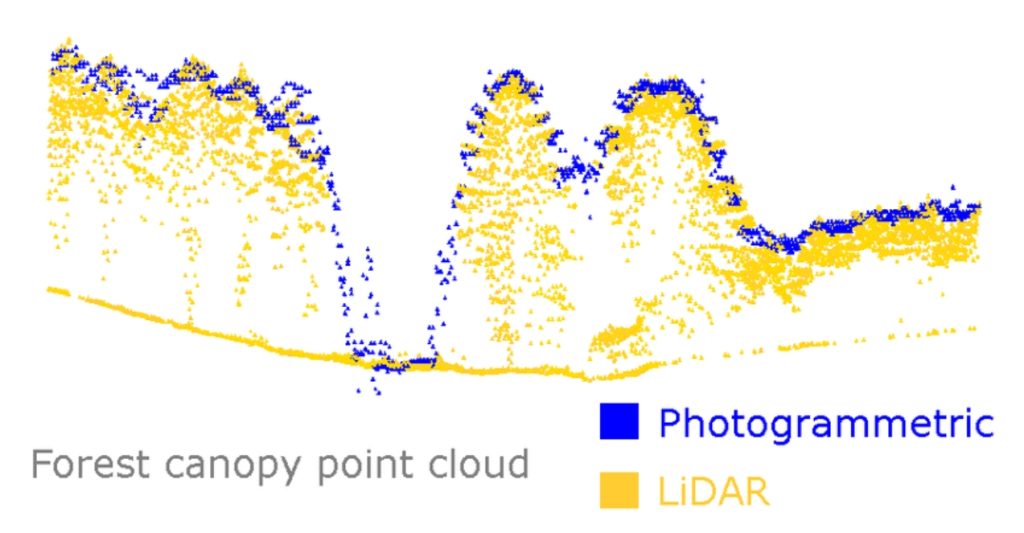

Comparison between photogrammetric and LiDAR point clouds

Comparison between photogrammetric and LiDAR point clouds. Source from "A Photogrammetric Workflow for the Creation of a Forest Canopy Height Model from Small Unmanned Aerial System Imagery".

Meshes

LiDAR point clouds can be further processed to generate a mesh, a collection of interconnected triangles that approximates the original surfaces. LiDAR-derived meshes are often smooth and accurate but may lack intricate details compared to photogrammetry.

Photogrammetry directly generates 3D meshes from overlapping images. These meshes often capture fine details and textures present in the images, leading to realistic and visually appealing models. However, they may struggle with areas with poor visibility or lack of texture.

Grids

Point clouds can be interpolated to create a regular grid, where each cell value represents the elevation or other property measured by the LiDAR. This format is useful for the analysis and visualization of continuous data like terrain elevation.

Grids are not a typical output of photogrammetry, but they can be derived from the 3D model for specific applications.

Textures

LiDAR point clouds directly lack color information. Textures can be applied to LiDAR-derived meshes using other techniques like photogrammetry or image overlays.

Photogrammetry excels at capturing textures and colors from the original images. These textures can be directly applied to the generated meshes, resulting in photorealistic outputs.

Ease of Use

LiDAR systems are known for their user-friendly data acquisition process. With minimal user input, you simply set the flight path, hit a button, and the LiDAR system autonomously captures the necessary data. Unlike photogrammetry, which demands capturing overlapping images at specific angles, LiDAR effortlessly collects data points across the entire area without requiring manual adjustments.

While operating and interpreting LiDAR data may demand a good understanding of the technology, the initial steps—such as filtering noise and generating point clouds—are often automated, reducing the need for extensive manual intervention. This automation streamlines the process, even for beginners.

Photogrammetry, on the other hand, offers a more accessible option for beginner users. It can be conducted using readily available drones and cameras, tapping into the familiarity most people have with the process of taking photos. This inherent simplicity in data capture makes photogrammetry feel more intuitive for beginners.

However, it's important to note that achieving accurate results in photogrammetry requires careful planning and precise control over camera angles and overlaps. This aspect can be time-consuming and prone to errors, adding a layer of complexity to the data acquisition process.

Output File Format

When it comes to output file formats, LiDAR and photogrammetry offer distinct results, each tailored to their unique data capture methods.

LiDAR

Point Clouds: The primary output of LiDAR is a point cloud, a vast collection of individual points typically stored in formats like LAS, E57, or PTS. Each point neatly houses its X, Y, and Z coordinates, along with additional information like intensity or reflection angle.
Meshes: Point clouds from LiDAR can be processed to generate meshes, usually saved in formats like OBJ, STL, or PLY. These formats represent the three-dimensional surfaces derived from the original point cloud data.
Grids: For applications such as terrain analysis, LiDAR data can be interpolated into grids. Each cell in the grid holds values like elevation or other properties, and these grids find their storage in formats like ASCII or GeoTIFF.

Photogrammetry

3D Models: Photogrammetry generates 3D models, commonly stored in formats like OBJ, STL, PLY, or FBX. These models, similar to LiDAR-derived meshes, often capture finer details and textures from the original images.
Orthomosaics: Photogrammetry can also produce orthomosaics—high-resolution stitched images corrected for camera tilt and distortion. These map-like representations of the captured area are typically saved in formats like TIFF or JPEG.
DEMs: Similar to LiDAR, photogrammetry can generate Digital Elevation Models (DEMs) representing terrain elevation. These DEMs are commonly stored in formats like ASCII or GeoTIFF, providing valuable insights into the topography.

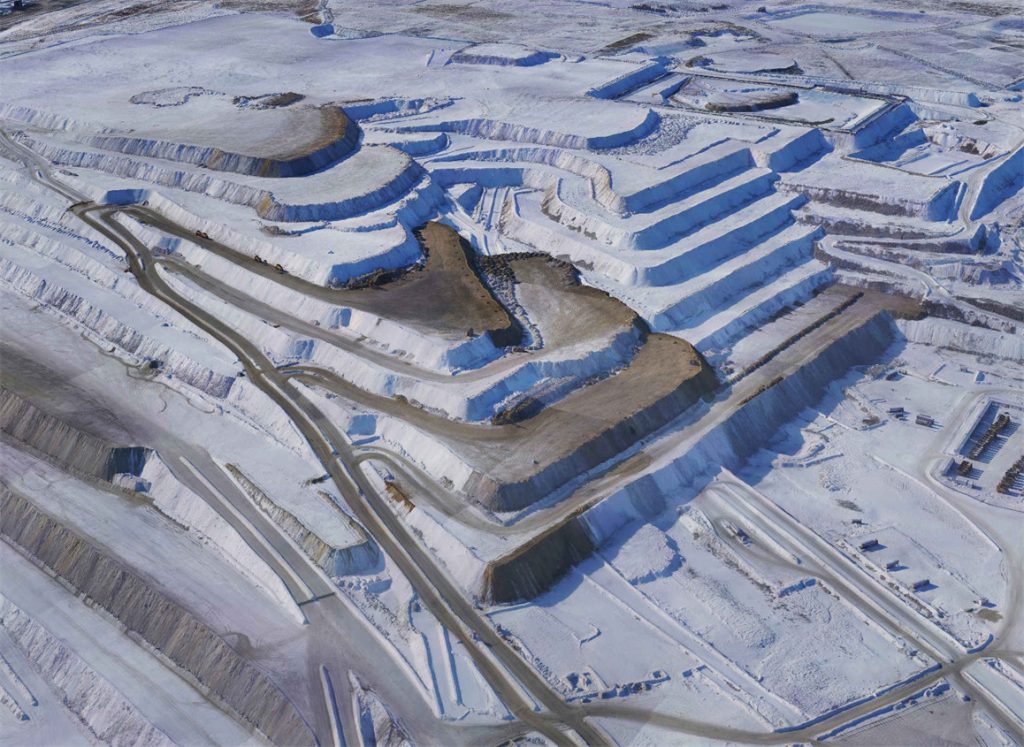

3D model of Baorixile open-pit mine

Specific Applications of LiDAR and Photogrammetry

LiDAR and photogrammetry are advanced remote sensing technologies with various applications. Here are specific applications for each:

LiDAR Applications

LiDAR is best for projects where accuracy and precision are crucial, you need to detect small or narrow structures such as cables, pipes, or telecom towers, or in areas where there is heavy vegetation.

Large-Scale Topographical Maps Featuring Heavy Vegetation

Large-scale topographical maps featuring dense vegetation are most effectively acquired using LiDAR drones. A Digital Terrain Model (DTM) of the forest floor offers valuable insights for construction planning (e.g., road development) and provides detailed information on forest biomass, vegetation, and habitats.

In scenarios like these, incorporating LiDAR, at least partially, is essential for normalizing topographical data.

Power Line Inspection and Vegetation Management

LiDAR revolutionizes power line inspection with its ability to swiftly and accurately assess the interaction between vegetation and power lines. This technology generates point clouds and 3D maps that facilitate the measurement of distances between foliage, various vegetation, and power lines.

Grid operators leverage this information to make informed decisions, predicting potential trouble spots. Unlike large-scale clearing operations, LiDAR allows operators to focus efforts on areas posing the greatest threat to the stability of the power line network.

Agriculture

LiDAR's geospatial data in agriculture offers comprehensive insights. Digital soil mapping reveals topsoil quality, soil types, and drainage. Identifying water sources optimizes well placement, enhancing water management.

Understanding water-prone areas aids in precise irrigation planning, mitigating soil erosion. For large farms, LiDAR analyzes sun exposure, water drainage, and erosion for optimal crop planning. The data aids pre- and post-planting analyses, ensuring accurate yield predictions and critical information during severe weather or crop health issues.

Forestry

LiDAR drones, equipped with artificial intelligence, prove invaluable for monitoring plant health within forestry applications. These drones gather and process data on the well-being of trees, vegetation, and bushlands.

Organizations managing extensive forested areas benefit from LiDAR drones, which provide regular updates and accurate information for strategic decision-making. The fast and precise scanning capabilities of LiDAR drones facilitate the identification of potential threats, such as landslides and fire risks.

Floodplain Mapping

In flood mapping, accurate Digital Elevation Models (DEMs) are essential, impacting hydrological modeling precision. Even a 1-meter DEM error in flat floodplains can lead to a substantial 100 km2 error in flood estimates.

Drone photogrammetry provides high-resolution DEMs but may be limited by clouds or haze during floods. In contrast, LiDAR is flexible, works day or night, and penetrates vegetation effectively, making it ideal for flood-related challenges.

Mining and Quarrying

LiDAR optimizes mining operations by calculating volumes, modeling terrain, and monitoring surface changes. It aids in efficient stockpile management, assists in designing mine layouts and access roads, and contributes to slope stability monitoring.

For sustainable practices, LiDAR assesses and mitigates environmental impacts, identifying concerns like erosion and vegetation loss. When integrated with technologies like ground-penetrating radar, LiDAR provides insights into subsurface features, indicating potential mineral deposits.

Photogrammetry Applications

Photogrammetry excels in projects requiring visual data, making it ideal for applications such as volume and structure management in mining and civil construction projects.

Surveying a Cleared Site with Sparse Vegetation

Obtaining topographical maps for areas with sparse vegetation can be efficiently achieved by photogrammetry. Integrating ground survey methods ensures cost-effectiveness while maintaining high accuracy, resolution, and photorealistic outcomes provided by photogrammetry.

Comprehensive tutorials with a reasonable learning curve for this integrated approach are readily available. It facilitates the precise mapping of terrain, offering crucial data for applications such as construction, land development, and environmental monitoring.

Construction and Engineering

Drones with photogrammetry capabilities are essential for on-site tasks in construction and engineering. They capture real-time aerial imagery, geotagged with precise GPS information. This data aids in distance calculation, progress tracking, and intricate project-related calculations.

The integration of surveying and photogrammetry techniques enables the creation of accurate 3D digital models, facilitating precise measurements, modifications, and design work for various infrastructures. This streamlined approach enhances project understanding and decision-making in construction and engineering.

Archaeological Site Documentation

Photogrammetry proves invaluable in archaeology, creating detailed 3D models of artifacts and excavation sites. This not only preserves a digital record but allows for in-depth analysis without physically handling objects.

It extends to mapping archaeological sites with precision, offering a detailed representation of terrain and structures. During excavations, photogrammetry documents trenches, artifacts, and stratigraphy, preserving nuanced contexts with high-resolution imagery.

When to Use LiDAR vs. Photogrammetry?

When deciding between LiDAR and photogrammetry, understanding their strengths in meeting specific project requirements is crucial.

Project Requirements (accuracy, resolution, detail)

LiDAR is renowned for its precision, creating detailed point clouds even in challenging conditions like low light or dense vegetation. Its ability to penetrate obstacles makes it perfect for accurate elevation data and terrain modeling.

Photogrammetry, on the other hand, offers commendable accuracy for visible surfaces. However, it may struggle in hidden areas and low-light conditions, making it more suitable for well-lit and open environments.

LiDAR excels in capturing fine details, discerning individual leaves on trees, or detecting cracks in a building. This makes it indispensable for applications where minute details are crucial.

Photogrammetry, while not matching LiDAR's precision, compensates with high-resolution textures and color information, enhancing the visual richness of the output. This makes it a preferred choice for certain applications.

Budget and Time Constraints

LiDAR systems and processing can be pricier compared to photogrammetry. However, the efficiency of LiDAR in handling complex environments might offset the initial cost for projects with specific needs.

Photogrammetry is generally more cost-effective, making it a practical choice for projects with budget constraints. The accessibility of equipment, such as drones, further contributes to its cost efficiency.

LiDAR data acquisition is often faster, especially when covering large areas or complex terrains. This speed advantage can be crucial in time-sensitive projects.

Photogrammetry processing time can be more time-consuming, particularly for projects with high complexity. However, ongoing advancements in software are continually improving processing efficiency.

Project Site Conditions (Terrain, Vegetation)

LiDAR proves effective in handling varied terrains, including steep slopes and cliffs. Its capability to navigate challenging landscapes makes it suitable for projects in diverse geographic settings.

Photogrammetry is best suited for relatively flat and open areas, efficiently capturing details on visible surfaces.

LiDAR's ability to penetrate vegetation is a distinct advantage, making it the technology of choice for mapping ground surfaces in forested areas or locations with dense vegetation.

However, photogrammetry may struggle with heavy vegetation, often missing features hidden beneath the canopy. It is more suitable for projects in areas with minimal vegetation cover.

Desired Output Format and Applications

Both LiDAR and photogrammetry provide 3D point clouds. However, LiDAR data often requires external texture application for visualization, while photogrammetry directly generates textured models and orthomosaics.

LiDAR is ideal for applications requiring precise measurements, volumetric calculations, and infrastructure modeling. Its accuracy and detailed point clouds make it a valuable tool for projects where precision is paramount.

Can You Combine LiDAR and Photogrammetry?

While LiDAR and Photogrammetry individually stand as powerful mapping technologies, their combination can yield even more detailed and accurate 3D models, especially when deployed on a drone equipped with both sensors. This integration allows for a comprehensive data capture approach, resulting in a more nuanced representation of the environment than either sensor could achieve independently.

What advantage does a combination of LiDAR and photogrammetry have over traditional LiDAR?

Improved Accuracy and Resolution: LiDAR provides accurate distance measurements, while photogrammetry captures high-resolution images. Combining both technologies allows for a more detailed and accurate 3D model. The dense point cloud generated by LiDAR can be complemented by the rich texture and detail from photogrammetric imagery.
Comprehensive Data Capture: LiDAR extends its reach to capture data about environments not visible in photographs, such as the undersides of bridges or interiors of buildings. Photogrammetry complements this by providing detailed visual information, resulting in a holistic dataset.
Complete Environmental Picture: The synergy between LiDAR and Photogrammetry creates a comprehensive overview of an environment, proving invaluable in applications spanning construction, engineering, environmental monitoring, and conservation.

Taking a closer look at specific applications, the collaborative use of LiDAR and Photogrammetry finds significant traction in archaeology. Here, LiDAR data is instrumental in creating detailed Digital Surface Models (DSM) of archaeological sites, refining Photogrammetry data for an accurate 3D model. This approach becomes indispensable in identifying features not visible on the surface, such as buried structures or changes in the site's topography.

In the field of forestry, the synergy between LiDAR and Photogrammetry provides researchers with a comprehensive understanding of the forest ecosystem. LiDAR accurately measures tree height and density, offering essential forestry metrics. Photogrammetry complements this by creating intricate 3D models of the forest canopy. This collaborative approach allows for a holistic analysis, including insights into species distribution and the impact of environmental factors like climate change and forest management practices.

The JoLiDAR-1500 takes the integration of LiDAR technology to new heights by combining a 1500m long-range laser scanning system, an inertial navigation system, and a high-resolution 61MP RGB camera. Mounted on the CW-25E UAV, the JoLiDAR-1500 leverages the platform's impressive 240-minute flight time and expansive 200km long range. This extended flight capability allows for large-scale surveys, mapping projects, and environmental monitoring.

FAQ

What is the Difference Between LiDAR and Image?

LiDAR Utilizes laser pulses to measure distances to objects, generating a 3D point cloud. This point cloud represents the precise location and elevation of points on the surface but lacks visual information like color or texture.

While image captures a 2D representation of the scene using a camera, providing color, texture, and visual clarity. However, images lack accurate depth information and struggle with obscured areas or low light conditions.

Is LiDAR the Same as Laser Scanning?

Laser scanning and LiDAR are often used interchangeably, as they refer to the same technology. Both terms represent the use of laser pulses to measure distances and create 3D point clouds. The specific names might be used in different contexts or by different industries.

Can LiDAR See Through Walls?

No, standard LiDAR cannot penetrate most solid objects like walls or buildings. Its laser pulses reflect from the surface they hit, and they lack the power to pass through solid materials. However, specialized ground-penetrating radar (GPR) systems can be used to image subsurface features through certain materials.

Can LiDAR Penetrate Ground?

Yes, LiDAR can effectively penetrate vegetation and loose materials like soil to some extent. This allows it to map the ground surface beneath forests or debris, making it valuable for terrain modeling and archaeological surveys. However, the penetration depth depends on the density and type of material being traversed.

What's the Difference Between LiDAR and Radar?

Both LiDAR and radar utilize electromagnetic waves to gather information, but they differ in their operating principles and data outputs:

LiDAR: Uses pulsed lasers in the visible or near-infrared spectrum to measure distances directly. It is well-suited for high-resolution 3D mapping and accurate distance measurements.

Radar: Employs continuous radio waves to detect objects and measure distances by analyzing the reflected signal's properties. Radar can penetrate through certain materials like fog or vegetation, and is often used for weather forecasting, remote sensing, and collision avoidance in vehicles.

How Does an Accuracy Scan Ensure LiDAR Quality and Accuracy?

Accuracy scans employ various techniques to ensure the quality and precision of the LiDAR data:

Multiple laser pulses: Each point in the point cloud is often represented by multiple laser returns, providing redundancy and reducing the impact of outliers.

Calibration and adjustments: LiDAR sensors are regularly calibrated to compensate for internal errors and environmental factors. Additional data processing steps can further refine the accuracy of the point cloud.

Ground control points: As mentioned earlier, GCPs can be used to anchor the LiDAR data to known coordinates, ensuring its alignment with reality.

Software checks: Specialized software can identify and eliminate outliers, noise, and systematic errors within the point cloud, further improving its overall accuracy.

By employing these techniques, accuracy scans can ensure that the final LiDAR data accurately reflects the real world, making it reliable for various applications in engineering, surveying, and scientific research.

Can You Fly a Drone at Night? A Legal and Technical Guide

Yes, in the United States, both Part 107-licensed and recreational drone operators can fly at night without a waiver by equipping their drones with anti-collision lights visible from up to three statu

Nov 01,2024

Comprehensive Guide to Boundary Surveys

Are you a property owner unsure of where your exact property lines are? Or maybe you’re planning a construction project or dealing with a boundary dispute with a neighbor? Boundary surveys are t

Oct 25,2024

Drone for Bridge Inspection: Benefits, Top Models, and Regulations

Bridges are vital to transportation and the economy, but with heavy use and aging infrastructure, they require frequent and costly repairs. In the U.S., over a third of bridges need significant repair

Oct 22,2024
